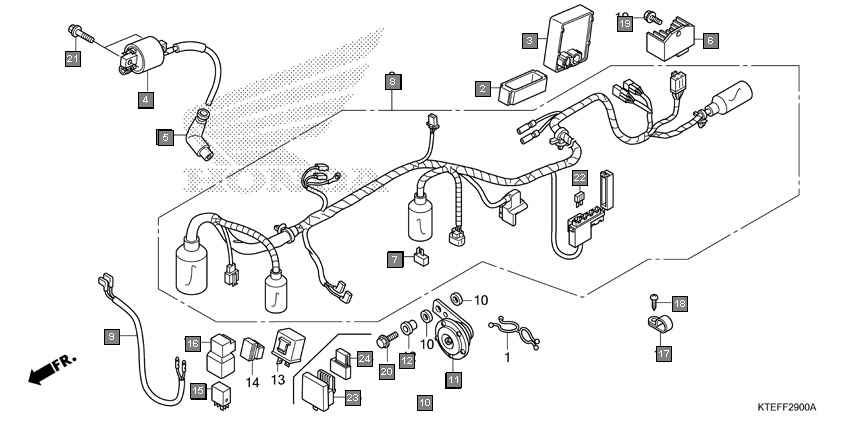

Motorcycles CB Shine CBF125H Frame Wire harness
Ref.No. Part No. Description Oty
1 30401KWPD21 CUSHION, C.D.I. UNIT (SHINDENGEN) 1
2 30410KTED01 C.D.I UNIT COMP.,DIGITAL(SHINDENGEN) 1
3 30500KTE601 COIL ASSY., IGNITION(ANU) 1
4 30700KTED01 CAP ASSY., NOISE SUPPRESSOR (MINDA) 1
5 30700KTED02 CAP ASSY., NOISE SUPPRESSOR (ANU) 1
6 31600K14961 RECTIFIER COMP., REGULATE(STAR ENGINEERS) 1
7 31700KTED01 RECTIFIER ASSY., SILICON 1
8 32100KTED00 HARNESS, WIRE 1
9 32100KTED10 HARNESS, WIRE 1
10 32102KTE600 SUB CORD 1
11 33714KL3620 RUBBER, TAILLIGHT BRACKET 2
12 38110KTED01 HORN COMP.(NIKKO) 1
13 38110KWF952 HORN COMP. 1
14 38117KFE701 COLLAR, HORN SETTING 1
15 38502KSP910 RELAY COMP., POWER (MICRO ISO 5P) 1
16 38502KWA931 RELAY COMP., POWER (MICRO ISO 5P)(MULTILINK) 1
17 38506K23900 SUSPENSION, POWER RELAY 1
18 90628750000 CLIP(14MM) 1
19 9390324320 SCREW, TAPPING, 4X12 1
20 957010601400 BOLT, FLANGE, 6X14 1
21 957010602008 BOLT, FLANGE, 6X20 1
22 960010602000 BOLT, FLANGE, 6X20 2
23 9820031500 FUSE, BLADE(15A) 2
24 38301K63D21 RELAY COMP., WINKER (STAR ENGINEERS) 1
25 38306KTE650 SUSPENSION, WINKER RELAY 1
