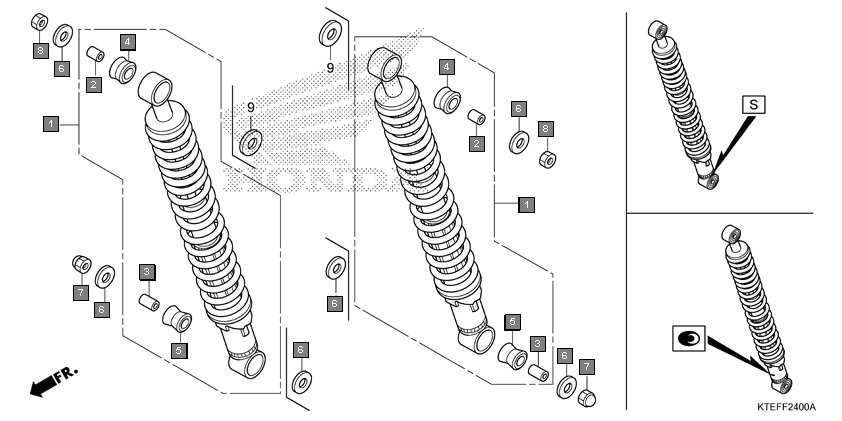

Motorcycles CB Shine CBF125H Frame Rear cushion
Ref.No. Part No. Description Oty
1 52400KTE651 CUSHION ASSY., RR.(SHOWA) (S) 2
2 52400KTE652 CUSHION ASSY., RR.(ENDURANCE) 2
3 52486056000 COLLAR, RR. CUSHION RUBBER BUSH 2
4 52485K23902 COLLAR, RUBBER BUSH(ENDURANCE) 2
5 52486KAG901 COLLAR, RUBBER BUSH 2
6 52486KTE652 COLLAR, RUBBER BUSH(ENDURANCE) 2
7 52489399601 BUSH, UPPER RUBBER 2
8 52495K23902 BUSH, RUBBER(ENDURANCE) 2
9 52495098000 BUSH, RUBBER 2
10 52496KTE652 BUSH, RUBBER(ENDURANCE) 2
11 90551KTE910 WASHER, SPECIAL, 10MM 6
12 9403010000 NUT, HEX., 10MM 2
13 90305K67900 NUT, CAP, 10MM 2
14 90661K67900 WASHER, SPECIAL, 12MM 2
