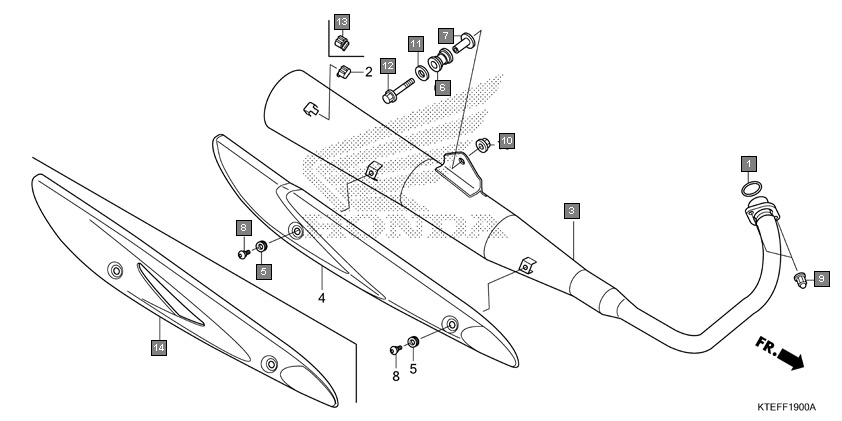

Motorcycles CB Shine CBF125H Frame Exhaust muffler
Ref.No. Part No. Description Oty
1 18291KSP901 GASKET, EX. PIPE 1
2 18300KTED00 MUFFLER COMP., EX. 1
3 18311KTE650 COVER, MUFFLER 1
4 18345MBT610 RUBBER, PROTECTOR MOUNTING 2
5 18421438670 RUBBER, MUFFLER MOUNTING 1
6 18442KRC900 COLLAR, MUFFLER MOUNTING 1
7 90113KYJ710 SCREW, PAN, 6X12 2
8 90305KSP900 NUT, EXHAUST PIPE, 8MM 2
9 9405010000 NUT, FLANGE, 10MM 1
10 9410310000 WASHER, PLAIN, 10MM 1
11 958011005500 BOLT, FLANGE, 10X55 1
12 18293MCAA20 RUBBER, PROTECTOR PACKING 1
13 18355KTED00 COVER, MUFFLER 1
14 18355KTED20 COVER, MUFFLER 1
