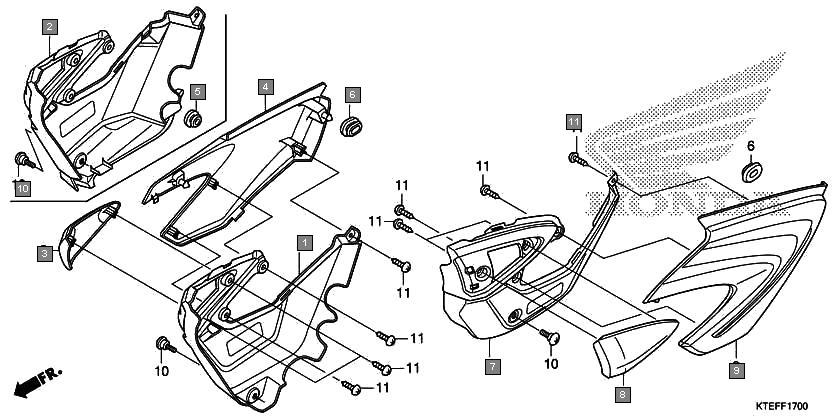

Motorcycles CB Shine CBF125H Frame Side cover
Ref.No. Part No. Description Oty
1 83502KTE650 SUB COVER, R. SIDE 1
2 83502KTED20 SUB COVER, R. SIDE 1
3 83503KTED00 COVER C, R. SIDE *NHB66R*......STALLION GRAY R 1
4 83510KTED20ZF COVER SET, R. SIDE(WL)*TYPE2* 1
5 83510KTED20ZG COVER SET, R. SIDE(WL) *TYPE1* 1
6 83510KTED00ZA COVER SET, R. SIDE(WL)*TYPE7* 1
7 83510KTED20ZC COVER SET, R. SIDE(WL)*TYPE5* 1
8 83510KTED00ZE COVER SET, R. SIDE(WL)*TYPE3* 1
9 83510KTED20ZB COVER SET, R. SIDE(WL)*TYPE6* 1
10 83510KTED00ZC COVER SET, R. SIDE(WL)*TYPE5* 1
11 83510KTED20ZA COVER SET, R. SIDE(WL)*TYPE7* 1
12 83510KTED00ZB COVER SET, R. SIDE(WL)*TYPE6* 1
13 83510KTED00ZG COVER SET, R. SIDE(WL)*TYPE1* 1
14 83510KTED20ZE COVER SET, R. SIDE(WL)*TYPE3* 1
15 83510KTED00ZF COVER SET, R. SIDE(WL)*TYPE2* 1
16 83510KTED20ZD COVER SET, R. SIDE(WL)*TYPE4* 1
17 83510KTED00ZD COVER SET, R. SIDE(WL)*TYPE4* 1
18 83551376000 GROMMET, SIDE COVER 1
19 83551GE2000 GROMMET, AIR CLEANER CASE 2
20 83602KTE650 SUB COVER, L. SIDE 1
21 83603KTED00 COVER C, L. SIDE *NHB66R*......STALLION GRAY R 1
22 83610KTED00ZJ COVER SET, L. SIDE(WL) *TYPE7 2* 1
23 83610KTED00ZD COVER SET, L. SIDE(WL)*TYPE5* 1
24 83610KTED00ZG COVER SET, L. SIDE(WL)*TYPE2* 1
25 83610KTED00ZE COVER SET, L. SIDE(WL)*TYPE4* 1
26 83610KTED00ZF COVER SET, L. SIDE(WL)*TYPE3* 1
27 83610KTED00ZH COVER SET, L. SIDE(WL)*TYPE1* 1
28 83610KTED00ZC COVER SET, L. SIDE(WL)*TYPE6* 1
29 90104KT2000 SCREW, SPECIAL, 6X14 2
30 9390324320 SCREW, TAPPING, 4X12 10
