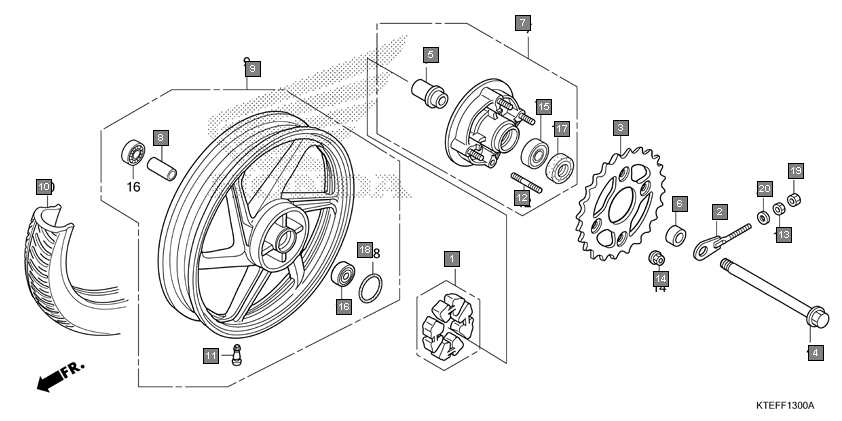

Motorcycles CB Shine CBF125H Frame Rear wheel
Ref.No. Part No. Description Oty
1 06410KTE910 DAMPER SET, WHEEL 1
2 40543KTE910 ADJUSTER COMP., R. CHAIN 1
3 41201KTED00 SPROCKET, FINAL DRIVEN(41T) 1
4 42301KTEA00 AXLE, RR. WHEEL 1
5 42303KWF950 SLEEVE, RR. WHEEL 1
6 42304KTEA00 COLLAR, RR. AXLE SLEEVE 1
7 42615KTE600 FLANGE SUB ASSY., FINAL DRIVEN 1
8 42620KTE950 COLLAR, RR. AXLE DISTANCE 1
9 42650KTE601ZA WHEEL SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC 1
10 42711KTE601 TIRE, RR.(MRF) (80/100-18 M/C 54P) 1
11 42711KTE602 TIRE, RR.(TVS) (80/100-18 M/C 54P) 1
12 42753KWF901 VALVE, RIM(TRITON) 1
13 90128KTE910 BOLT, STUD, 8X20 4
14 90302KBP900 NUT, SPECIAL, 6MM 1
15 90309KTE911 NUT, FLANGE SPECIAL, 8MM 4
16 91051K23902 BEARING, RADIAL BALL, 6203UU(SKF) 1
17 91051K23904 BEARING, RADIAL BALL, 6203UU(FAG) 1
18 91051KWF901 BEARING, RADIAL BALL, 6203UU(NSK) 1
19 91081KYJ711 BEARING, RADIAL BALL, 6203UU (NEI) 1
20 06410KTE900 DAMPER SET, WHEEL 1
21 91052K23903 BEARING, RADIAL BALL, 6301U (NEI) 2
22 91052K23905 BEARING, RADIAL BALL, 6301U (JTEKT) 2
23 91052KWF901 BEARING, RADIAL BALL, 6301U (NSK) 1
24 91052KWWA81 BEARING, RADIAL BALL, 6301U (SKF) 2
25 91053KWW642 BEARING, RADIAL BALL, 6301U (FAG) 2
26 91251KGH901 DUST SEAL, 27X40X4.5(ARAI) 2
27 91304704000 O-RING, 42MM 1
28 94001060000S NUT, HEX., 6MM 1
29 9410106000 WASHER, PLAIN, 6MM 1
