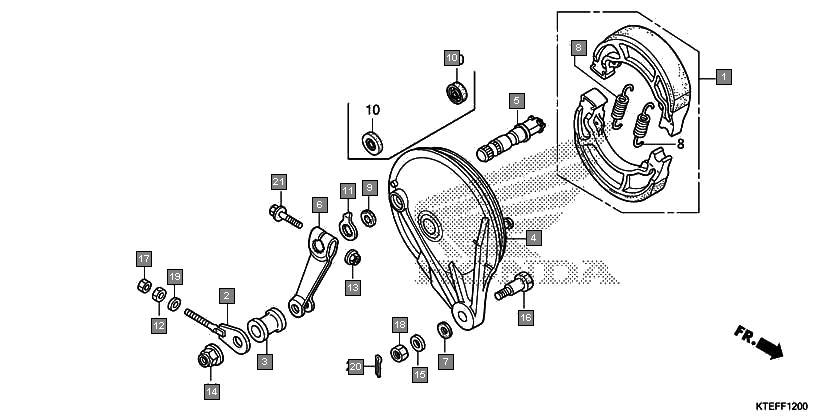

Motorcycles CB Shine CBF125H Frame Rear brake panel
Ref.No. Part No. Description Oty
1 06430KTN700 SHOE SET, BRAKE(JB) 1
2 40543KTE910 ADJUSTER COMP., R. CHAIN 1
3 42313KTE910 COLLAR, RR. BRAKE PANEL SIDE 1
4 43100KTE950ZA PANEL COMP., RR. BRAKE *NH303M* MAT AXIS GRAY METALLIC 1
5 43100KTE670ZA PANEL COMP., RR. BRAKE *NH303M* MAT AXIS GRAY METALLIC 1
6 43141KTC900 CAM, RR. BRAKE 1
7 43141KTE670 CAM, RR. BRAKE 1
8 43410KCT690 ARM, RR. BRAKE 1
9 43410KTE670 ARM, RR. BRAKE 1
10 43434ME1670 RUBBER, STOPPER ARM 1
11 45133KCC900 SPRING, FR. BRAKE SHOE (FOR RR.) 2
12 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 1
13 45134250000 DUST SEAL, BRAKE CAM 1
14 45134KB7005 DUST SEAL, BRAKE CAM(NOK) 2
15 91203KPL901 OIL SEAL, 14X20X3.2 2
16 91204KWPD01 OIL SEAL, 14X20X3.2(FENNER) 2
17 45145KFM900 INDICATOR, FR. BRAKE (FOR RR.) 1
18 90302KBP900 NUT, SPECIAL, 6MM 1
19 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 1
20 90302KST942 NUT, FLANGE, 6MM (LEO FASTENERS) 1
21 90306KST942 NUT, FLANGE, 12MM (LEO FASTENERS) 1
22 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
23 90505425000 WASHER, 8MM 1
24 9281110000 BOLT A, BRAKE STOPPER 1
25 94001060000S NUT, HEX., 6MM 1
26 94001080000S NUT, HEX., 8MM 1
27 9410106000 WASHER, PLAIN, 6MM 1
28 9420120150 PIN, SPLIT, 2.0X15 1
29 957010603500 BOLT, FLANGE, 6X35 1
30 957020603500 BOLT, FLANGE, 6X35 1
