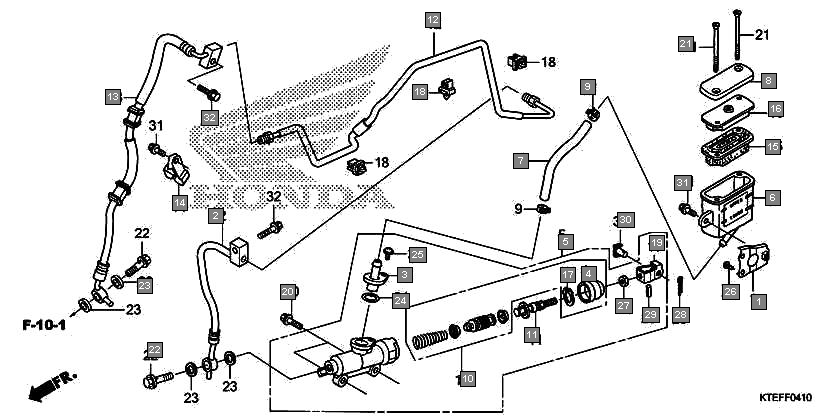

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 17209KTE670 | STAY, OIL CUP | 1 |
| 2 | 43310KTE671 | HOSE COMP., RR. BRAKE | 1 |
| 3 | 43503KTE671 | CONNECTOR | 1 |
| 4 | 43504KVSF31 | BOOT | 1 |
| 5 | 43510KTE671 | CYLINDER SUB ASSY., RR. BRAKE MASTER | 1 |
| 6 | 43511K38911 | CUP COMP., OIL | 1 |
| 7 | 43512KZL931 | HOSE, MASTER CYLINDER | 1 |
| 8 | 43513KBP881 | CAP, MASTER CYLINDER | 1 |
| 9 | 43514KS6701 | CLAMP, MASTER CYLINDER OIL HOSE | 2 |
| 10 | 43520KVSF31 | PISTON SET, MASTER CYLINDER | 1 |
| 11 | 43530KVSF31 | ROD COMP., PUSH | 1 |
| 12 | 45127KTE670 | PIPE COMP., FR. BRAKE | 1 |
| 13 | 45128KTE671 | HOSE COMP. B, FR. BRAKE | 1 |
| 14 | 45157KTE670 | CLAMPER B, FR. BRAKE HOSE | 1 |
| 15 | 45520GW0911 | DIAPHRAGM | 1 |
| 16 | 45521GW0911 | PLATE, DIAPHRAGM | 1 |
| 17 | 46182KVSF31 | CIRCLIP, MASTER CYLINDER(CBS) | 1 |
| 18 | 46391SDAA01 | CLIP G, BRAKE PIPE | 3 |
| 19 | 46504KVSF31 | JOINT, BRAKE ROD | 1 |
| 20 | 90101K38910 | BOLT, FLANGE, 6X18 | 1 |
| 21 | 90140KZZ901 | SCREW, FLAT, 4X45 | 2 |
| 22 | 90145GW3981 | BOLT, OIL, 10X22 | 2 |
| 23 | 90545300000 | WASHER, OIL BOLT | 1 |
| 24 | 91212422006 | O-RING, 14.8X2.4 | 1 |
| 25 | 938930401217 | SCREW-WASHER, 4X12 | 1 |
| 26 | 9390325220 | SCREW, TAPPING, 5X12 | 2 |
| 27 | 94002060000S | NUT, HEX., 6MM | 1 |
| 28 | 9420120150 | PIN, SPLIT, 2.0X15 | 1 |
| 29 | 9430520102 | PIN, SPRING, 2X10 | 1 |
| 30 | 9501554000 | PIN D, JOINT | 1 |
| 31 | 960010601400 | BOLT, FLANGE, 6X14 | 2 |
| 32 | 960010602500 | BOLT, FLANGE, 6X25 | 2 |
