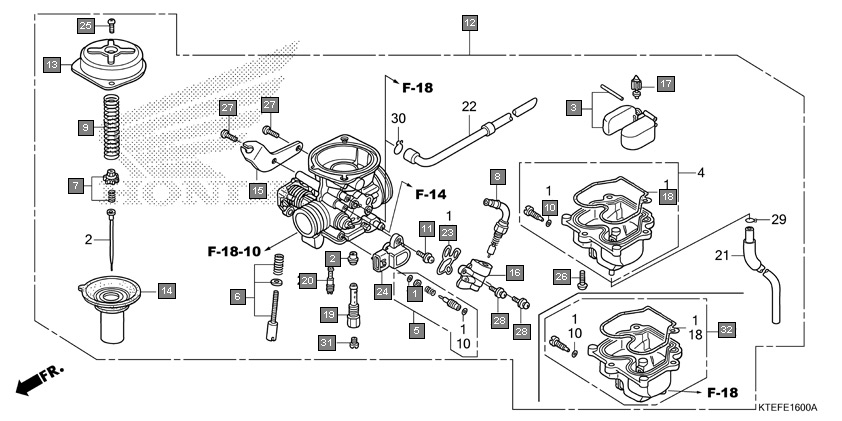

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16010KSP911 | GASKET SET | 1 |
| 2 | 16012KTED01 | NEEDLE SET, JET | 1 |
| 3 | 16013KRC921 | FLOAT SET | 1 |
| 4 | 16015KSP911 | CHAMBER SET, FLOAT | 1 |
| 5 | 16016KTE911 | SCREW SET A | 1 |
| 6 | 16028KTE651 | SCREW SET B | 1 |
| 7 | 16037KPP861 | PLATE SET, VALVE | 1 |
| 8 | 16046KVC901 | VALVE SET, STARTER | 1 |
| 9 | 16050KTE911 | SPRING, COMPRESSION COIL | 1 |
| 10 | 16075KRP981 | O-RING | 2 |
| 11 | 16080KTN901 | SCREW-WASHER, TORX(5X16) | 1 |
| 12 | 16107KGF911 | TOP | 1 |
| 13 | 16100KTED01 | CARBURETOR ASSY.(3CK A) | 1 |
| 14 | 16111KTE911 | PISTON COMP., VACUUM | 1 |
| 15 | 16119KTE911 | STAY, WIRE | 1 |
| 16 | 16140KTE911 | BODY COMP., BYSTARTER | 1 |
| 17 | 16155KFR701 | VALVE COMP., FLOAT | 1 |
| 18 | 16163KRP981 | GASKET, FLOAT CHAMBER | 1 |
| 19 | 16165KTED01 | HOLDER, NEEDLE JET | 1 |
| 20 | 16180KGF911 | JET, SLOW, #38 | 1 |
| 21 | 16197KTE651 | TUBE COMP. | 1 |
| 22 | 16198KTE911 | TUBE COMP., AIR VENT | 1 |
| 23 | 16423KGH901 | GASKET, BYSTARTER | 1 |
| 24 | 37890KTN901 | SENSOR ASSY., THROTTLE | 1 |
| 25 | 93500040081H | SCREW, PAN, 4X8 | 2 |
| 26 | 93500040120H | SCREW, PAN, 4X12 | 3 |
| 27 | 93500050121H | SCREW, PAN, 5X12 | 2 |
| 28 | 938920501218 | SCREW-WASHER, 5X12 | 2 |
| 29 | 99101KFG1050 | JET, MAIN, #105 | 1 |
| 30 | 16015KTED01 | CHAMBER SET, FLOAT | 1 |
