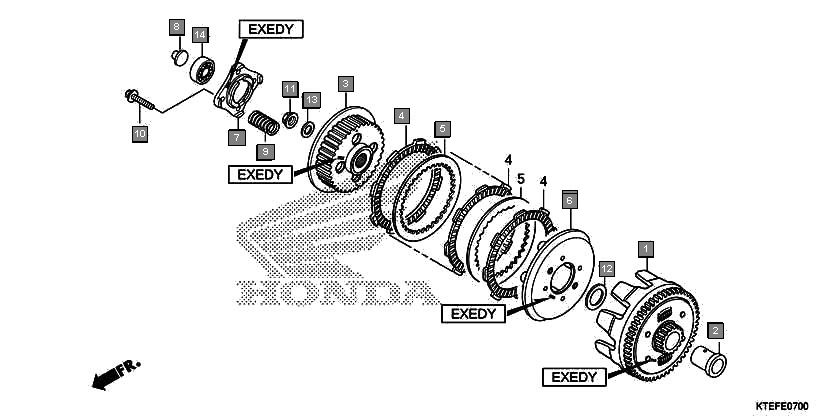

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 22100KTE652 | OUTER COMP., CLUTCH(EXEDY) | 1 |
2 | 22115KSP910 | GUIDE, CLUTCH OUTER | 1 |
3 | 22120KTE652 | CENTER, CLUTCH(EXEDY) | 1 |
4 | 22201KTE652 | DISK, CLUTCH FRICTION(EXEDY) | 4 |
5 | 22321KTE652 | PLATE, CLUTCH(EXEDY) | 3 |
6 | 22355KTE652 | PLATE, CLUTCH PRESSURE(EXEDY) | 1 |
7 | 22361KTE652 | PLATE, CLUTCH LIFTER(EXEDY) | 1 |
8 | 22366KRM840 | ROD, CLUTCH LIFTER | 1 |
9 | 22401KTE652 | SPRING, CLUTCH(EXEDY) | 4 |
10 | 90050KFL850 | BOLT, SPECIAL FLANGE, 6X25 | 4 |
11 | 90202KRM840 | NUT, SPECIAL FLANGE, 14MM | 1 |
12 | 90401KTE910 | WASHER, PLAIN, 17MM | 1 |
13 | 90501KPTA00 | WASHER, 14.1X29X2.8 | 1 |
14 | 961006003000 | BEARING, RADIAL BALL, 6003 | 1 |
