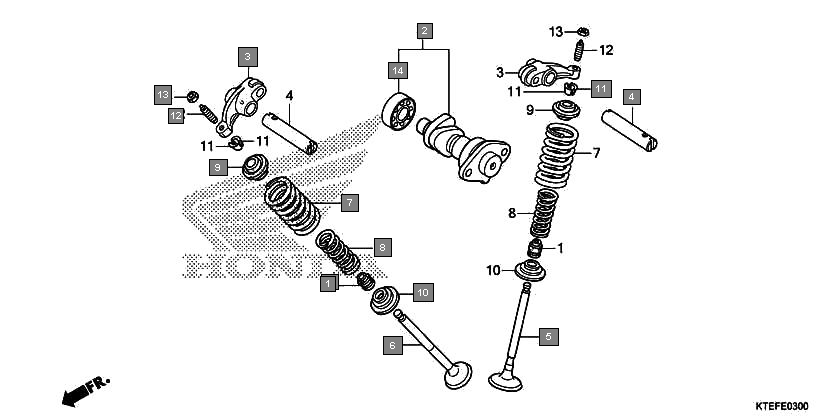

Motorcycles CB Shine CBF125H Engine Camshaft/valve
Ref.No. Part No. Description Oty
1 12209GB4682 SEAL, VALVE STEM(ARAI) 2
2 12209KWPD01 SEAL, VALVE STEM(SKF) 2
3 14100KTE910 CAMSHAFT COMP. 1
4 14100KTE600 CAMSHAFT COMP. 1
5 14430KSP910 ARM COMP., VALVE ROCKER 2
6 14451KRM840 SHAFT, ROCKER ARM 2
7 14711KTE910 VALVE, IN. 1
8 14721KTE910 VALVE, EX. 1
9 14751KSP910 SPRING, VALVE OUTER 2
10 14761KSP910 SPRING, VALVE INNER 2
11 14771KSP910 RETAINER, VALVE SPRING 2
12 14777KGH900 SEAT, VALVE SPRING 2
13 14781MA6000 COTTER, VALVE 4
14 90012KK3830 SCREW, TAPPET ADJUSTING 2
15 90206250000 NUT, TAPPET ADJUSTING 2
16 961006001300 BEARING, RADIAL BALL, 6001 1
