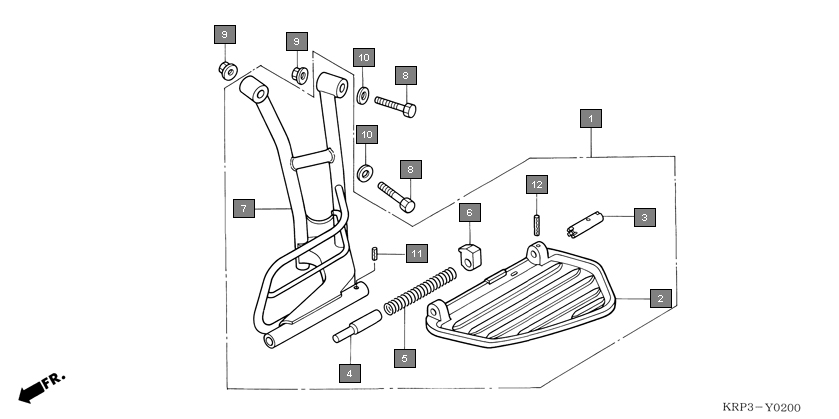

Scooters Aviator SCV110GC Frame Sari step set
Ref.No. Part No. Description Oty
1 83520KRP900 STEP ASSY., SARI 1
2 83521KPL900 PLATE, SARI STEP 1
3 83522KPL900 PIN A, SARI STEP 1
4 83523KPL900 PIN B, SARI STEP 1
5 83524KPL900 SPRING, STEP RETURN 1
6 83526KPL900 STOPPER, STEP RUBBER 1
7 83530KRP900 STEP COMP., SARI 1
8 92201080450A BOLT, HEX., 8X45 2
9 9405008000 NUT, FLANGE, 8MM 2
10 9410308800 WASHER, PLAIN, 8MM 2
11 9430530142 PIN, SPRING, 3X14 1
12 9430530282 PIN, SPRING, 3X28 1
