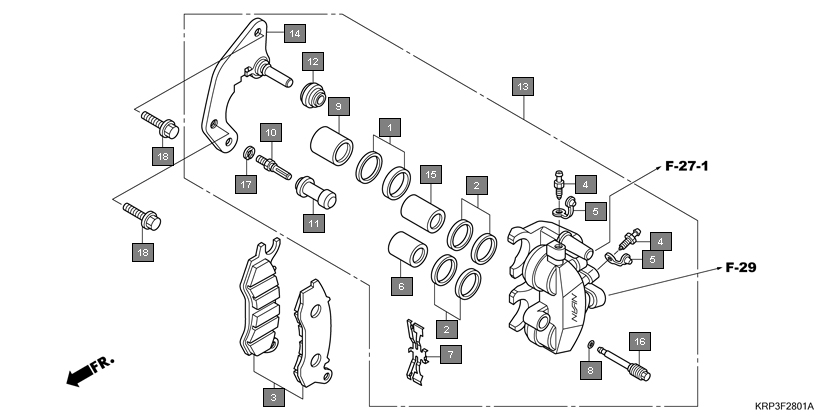

Scooters Aviator SCV110GC Frame Front brake caliper(scv110ga-2id,gc-2id,fd)
Ref.No. Part No. Description Oty
1 06451GE2405 SEAL SET, PISTON 1
2 06451MZ2405 SEAL SET, PISTON 2
3 06455KWN931 PAD SET, FR. 1
4 43352568003 SCREW, BLEEDER(NISSIN) 2
5 43353461771 CAP, BLEEDER 2
6 45107MAJG41 PISTON A, 22X27 1
7 45108KWN931 SPRING, PAD 1
8 45111MAJG41 RING, STOPPER 1
9 45117MAJG41 PISTON A, 25X27 1
10 45131GZ0006 BOLT, PIN 1
11 45132166016 BOOT, PIN BUSH(NISSIN) 1
12 45133MA3006 BOOT B 1
13 45150KVT961 CALIPER SUB ASSY., L. FR. 1
14 45190KVT961 BRACKET SUB ASSY., L. FR. 1
15 45207MAJG41 PISTON B, 22X35 1
16 45215KPH951 PIN, HANGER 1
17 45216166006 WASHER, WAVE 1
18 90155KSP900 BOLT, FLANGE, 8X25 2
