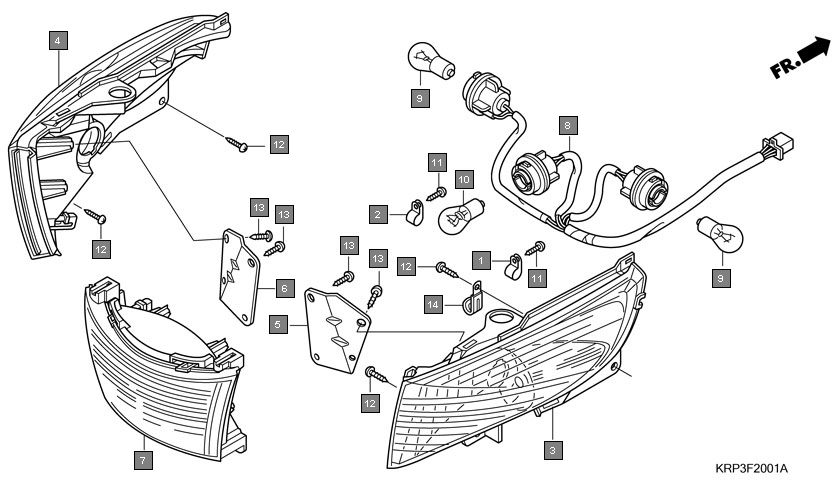

Scooters Aviator SCV110GC Frame Rear combination light(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 32920KVT901 CLIP A, HARNESS 1
2 32930KVT901 CLIP B, HARNESS 1
3 33610KVT901 WINKER UNIT, R. RR. 1
4 33660KVT901 WINKER UNIT, L. RR. 1
5 33706KVT900 STAY, R. RR. COMBINATION LIGHT 1
6 33707KVT900 STAY, L. RR. COMBINATION LIGHT 1
7 33710KVT901 TAILLIGHT UNIT 1
8 33715KVT901 SOCKET COMP. 1
9 34904KTE910 BULB, WINKER(AMBER)(12V 21W) 2
10 34904KTP901 BULB, WINKER LIGHT(12V 21W)(AMBER) 2
11 34904KVT940 BULB, WINKER LIGHT(12V 21W) 2
12 34906KRB900 BULB, TAILLIGHT(12V 21/5W) 1
13 34907KVN901 BULB, TAIL & STOP LIGHT (12V 21/5W) 1
14 9390134420 SCREW, TAPPING, 4X16 2
15 9390334420 SCREW, TAPPING, 4X16 4
16 9390335320 SCREW, TAPPING, 5X16 8
17 9459127000 CLIP, 2X70 1
