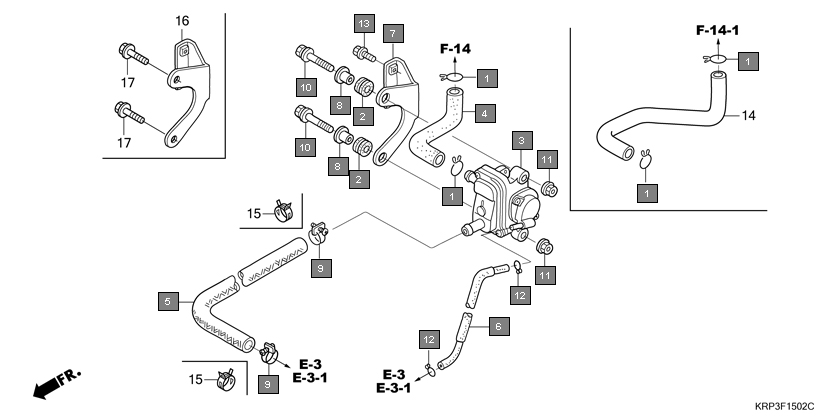

Scooters Aviator SCV110GC Frame Air suction valve(2)
Ref.No. Part No. Description Oty
1 17316611000 CLIP, BREATHER TUBE 2
2 17622GB7900 RUBBER, CUSHION 2
3 18600KWP901 VALVE ASSY., AIR SUCTION 1
4 18652KWP900 HOSE, AIR SUCTION VALVE 1
5 18653KWP900 TUBE, AIR SUCTION VALVE 1
6 50142KPL840 STAY, AIR SUCTION VALVE 1
7 90501KC2750 WASHER, REGULATOR SETTING 2
8 91462KM7910 CLIP, TUBE 2
9 934040603008 BOLT-WASHER, 6X30 2
10 9405006000 NUT, FLANGE, 6MM 2
11 9500202070 CLIP, TUBE(B7) 2
12 957010601208 BOLT, FLANGE, 6X12 2
13 957020601208 BOLT, FLANGE, 6X12 2
14 18651KVT900 TUBE, AIR INJECTION CONTROL VALVE 1
