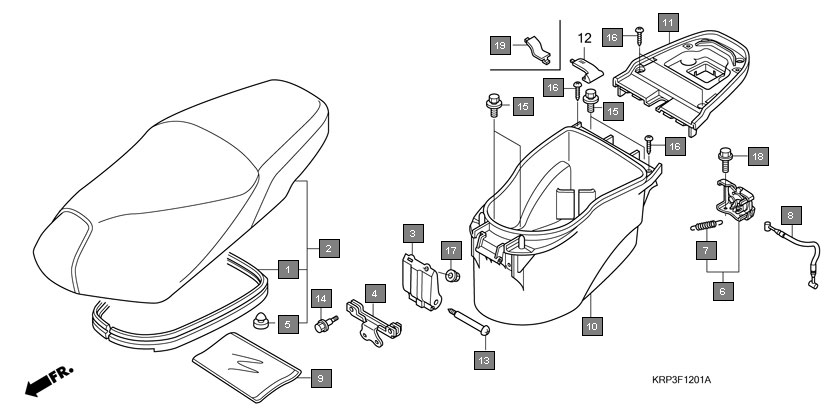

Scooters Aviator SCV110GC Frame Seat/luggage box(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 77115KVT900 RUBBER, SEAL 1
2 77200KVT940 SEAT COMP., DOUBLE *TYPE1* 1
3 77201KVT900 HINGE, SEAT 1
4 77203KVT900 STAY, HOOK LUGGAGE 1
5 77206KG8900 RUBBER, SEAT SETTING 2
6 77235KVT900 CATCH COMP., SEAT 1
7 77236GBL000 SPRING, SEAT CATCH 1
8 77240KVT940 CABLE, SEAT LOCK 1
9 77251KPL900 BAG, SERVICE BOOK 1
10 81250KVT940 BOX, LUGGAGE 1
11 81251KVT900 COVER, FUEL TANK 1
12 90105KTP900 PIN, HINGE 1
13 90112KRP900 BOLT, FLANGE, 6X18 2
14 934040601207 BOLT-WASHER, 6X12 4
15 9390325380 SCREW, TAPPING, 5X16 6
16 9405006000 NUT, FLANGE, 6MM 2
17 957010601608 BOLT, FLANGE, 6X16 2
18 957020601608 BOLT, FLANGE, 6X16 2
19 81255KVT940 COVER, CARBURETOR MAINTENANCE 1
