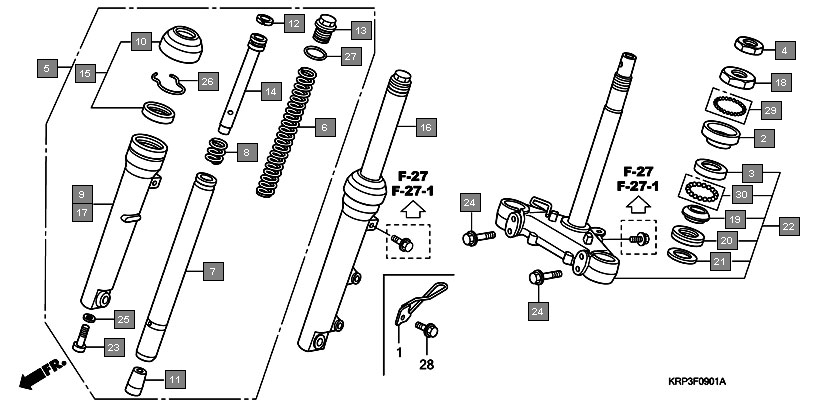

Scooters Aviator SCV110GC Frame Steering stem/front fork(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 45160KVT940 GUIDE COMP., BRAKE CABLE 1
2 50301KEM900 RACE, STEERING UPPER BALL 1
3 50302268010 RACE, STEERING BOTTOM BALL 1
4 50306KPL900 NUT, STEERING STEM LOCK 1
5 51400KVT901 FORK ASSY., R. FR.(SHOWA) 1
6 51400KVT961 FORK ASSY., R. FR.(SHOWA) 1
7 51401KVT911 SPRING, FR. FORK 2
8 51410KVT911 PIPE COMP., FR. FORK 2
9 51412KSP901 SPRING, REBOUND 2
10 51420KVT901 CASE, R. FR. BOTTOM 1
11 51420KVT961 CASE, R. FR. BOTTOM 1
12 51425KST901 SEAL, DUST 2
13 51432KFN851 PIECE, OIL LOCK 2
14 51437KTC901 RING, PISTON 2
15 51454KVT911 BOLT, FR. FORK 2
16 51470KVT911 PIPE, SEAT 2
17 51490KST305 SEAL SET, FR. FORK 2
18 51500KVT901 FORK ASSY., L. FR.(SHOWA) 1
19 51500KVT961 FORK ASSY., L. FR.(SHOWA) 1
20 51520KVT901 CASE, L. FR. BOTTOM 1
21 51520KVT961 CASE, L. FR. BOTTOM 1
22 53211KEM900 RACE, STEERING TOP CONE 1
23 53212250010 RACE, STEERING BOTTOM CONE 1
24 53214250000 DUST SEAL, STEERING HEAD 1
25 53215KPL900 WASHER, STEERING HEAD DUST SEAL 1
26 53219KVT910 STEM SUB ASSY., STEERING 1
27 53219KVT900 STEM SUB ASSY., STEERING 1
28 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
29 90153GC4731 BOLT, FLANGE, 10X40 4
30 90544439930 PACKING(SHOWA) 2
31 90601GF5731 RING, OIL SEAL STOPPER(SHOWA) 2
32 91356KAG901 O-RING(SHOWA) 2
33 957010601200 BOLT, FLANGE, 6X12 1
34 957020601200 BOLT, FLANGE, 6X12 1
35 06530KEMP00 BALL SET, STEEL, #5X26 1
36 06531KEMP00 BALL SET, STEEL, #8X19 1
