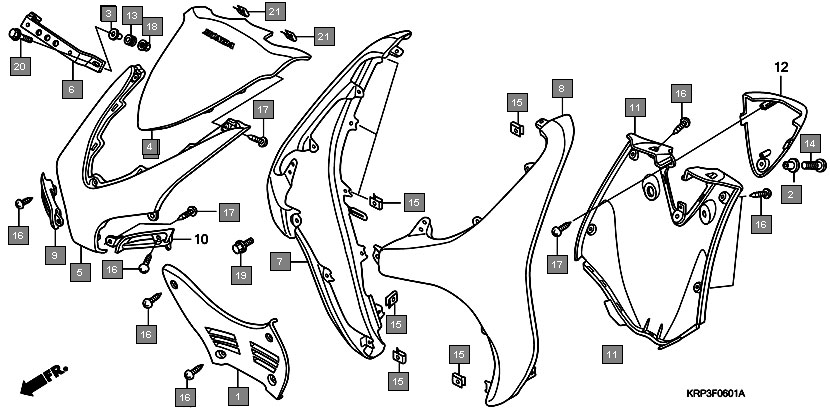

Scooters Aviator SCV110GC Frame Front cover(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 50623KVT900ZA COVER, FR. UNDER *NH1* BLACK 1
2 61103KRY900 COLLAR A, FR. FENDER 1
3 61104428010 COLLAR, FR. FENDER(WHITE)..... (FOR RR.) 2
4 61104428730 COLLAR, FR. FENDER(BLACK)..... (FOR RR.) 2
5 64200KVT901ZA *NHB04M*MONSOON GRAY METALLIC 1
6 64200KVT901ZB *NHB05P*..PEARL IGNEOUS BLACK 1
7 64200KVT901ZD *RP181M*BERRY PURPLE METALLIC 1
8 64200KVT901ZE *R329M*....REBEL RED METALLIC 1
9 64200KVT901ZH *NHA66P*..PEARL SUNBEAM WHITE 1
10 64302KVT900ZA COVER, FR. LOWER *NHB07M* MAT EARL SILVER METALLIC 1
11 64302KVT960 COVER, FR. LOWER *NHB07M* MAT EARL SILVER METALLIC 1
12 64303KVT900 STAY, FR. NUMBER PLATE 1
13 64304KVT900ZZ COVER COMP., R. FR. 1
14 64305KVT901ZZ COVER COMP., L. FR. 1
15 64312KVT940ZA LOUVER, FR. COVER *NH1* BLACK 1
16 64313KVT900ZA LOUVER, L. FR. COVER *NH1* BLACK 1
17 81131KVT900ZB COVER, INNER *NHB05P* PEARL IGNEOUS BLACK 1
18 81131KVT900ZE COVER, INNER *R329* REBEL RED METALLIC 1
19 81131KVT900ZA COVER, INNER *NHB04M* MONSOON GRAY METALLIC 1
20 81131KVT900ZD COVER, INNER *RP181M* BERRY PURPLE METALLIC 1
21 81131KVT960ZA COVER, INNER *NHB04M* MONSOON GRAY METALLIC 1
22 81131KVT960ZB COVER, INNER *NHB05P* PEARL IGNEOUS BLACK 1
23 81131KVT960ZD COVER, INNER *R329M* REBEL RED METALLIC 1
24 81131KVT960ZF COVER, INNER *RP181M* BERRY PURPLE METALLIC 1
25 81131KVT960ZG COVER, INNER *NHA66P* PEARL SUNBEAM WHITE 1
26 81131KVT900ZH COVER, INNER *NHA66P* PEARL SUNBEAM WHITE 1
27 81132KVT900ZA COVER, INNER UPPER *NH1* BLACK 1
28 84703425000 RUBBER, TAILLIGHT MOUNTING 2
29 90113KVT901 BOLT, SPECIAL HEX., 6X20 1
30 90344KRB900 NUT, CLIP, 5MM 14
31 9390325380 SCREW, TAPPING, 5X16 12
32 9390334320 SCREW, TAPPING, 4X12 7
33 9390334320 SCREW, TAPPING, 4X12 5
34 9405006080 NUT, FLANGE, 6MM 2
35 957010601208 BOLT, FLANGE, 6X12 4
36 957020601208 BOLT, FLANGE, 6X12 4
37 957010602507 BOLT, FLANGE, 6X25 2
38 957020602507 BOLT, FLANGE, 6X25 2
39 90344KRP900 NUT, CLIP, 5MM 2
