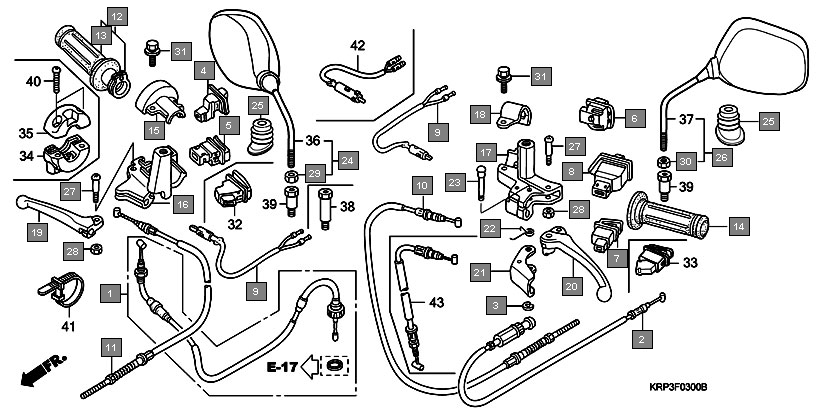

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06179KVTD00 | CABLE SET, THROTTLE | 1 |
| 2 | 17950KVT940 | CABLE COMP., CHOKE | 1 |
| 3 | 35150KVT941 | SWITCH UNIT, LIGHTING | 1 |
| 4 | 35170KPL901 | SWITCH UNIT, DIMMER(MINDA) | 1 |
| 5 | 35170KPL842 | SWITCH UNIT, DIMMER(JAY USHIN) | 1 |
| 6 | 35200KWP901 | SWITCH UNIT, WINKER(MINDA) | 1 |
| 7 | 35340KPL841 | SWITCH ASSY., FR. STOP | 1 |
| 8 | 53146KRB901 | GRIP COMP., THROTTLE | 1 |
| 9 | 53166KPL901 | GRIP, L. HANDLE | 1 |
| 10 | 53172KVT960 | BRACKET, L. HANDLE LEVER | 1 |
| 11 | 53173KPL900 | BAND, HANDLE BRACKET | 1 |
| 12 | 53178KVT960 | LEVER, L. HANDLE | 1 |
| 13 | 88113KRP901 | CAP, LOCK NUT | 2 |
| 14 | 90115KPL900 | SCREW, HANDLE LEVER PIVOT | 1 |
| 15 | 90304KPL900 | NUT, HEX., 5MM | 1 |
| 16 | 90201KV3680 | NUT, HEX., 8MM(L.H.) | 1 |
| 17 | 934010602000 | BOLT-WASHER, 6X20 | 1 |
| 18 | 35160KWP901 | SWITCH UNIT, STARTER | 1 |
| 19 | 35180KWP901 | SWITCH UNIT, HORN | 1 |
| 20 | 53167GAHA00 | HOUSING, UNDER THROTTLE | 1 |
| 21 | 53168GAHA00 | HOUSING, UPPER THROTTLE | 1 |
| 22 | 88110KWP901 | MIRROR ASSY., R. BACK | 1 |
| 23 | 88120KWP901 | MIRROR ASSY., L. BACK | 1 |
| 24 | 90101KVT910 | BOLT, ADAPTER, 10MM | 1 |
| 25 | 90102KVT900 | BOLT, ADAPTER, 8MM | 1 |
| 26 | 93500050220A | SCREW, PAN, 5X22 | 2 |
| 27 | 32161KSP920 | BAND B1, WIRE | 1 |
| 28 | 35340KVT961 | SWITCH ASSY., L. STARTER | 1 |
| 29 | 43440KVT961 | CABLE COMP., RR. FIRST BRAKE | 1 |
