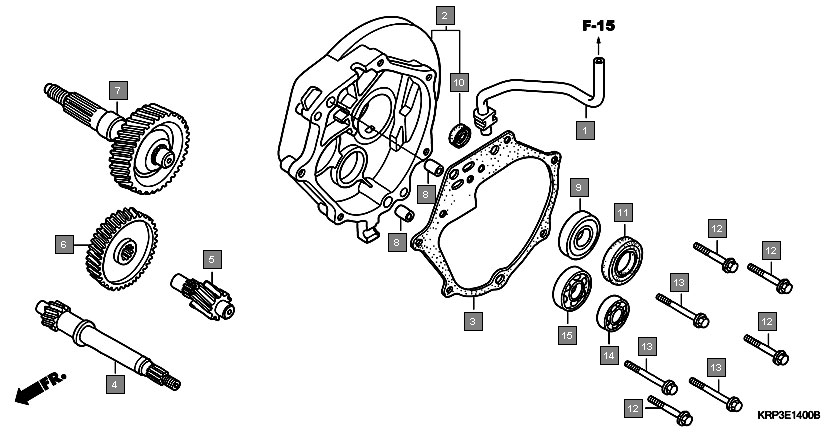

Scooters Aviator SCV110GC Engine Transmission
Ref.No. Part No. Description Oty
1 11220GCC000 TUBE, MISSION BREATHER 1
2 21200KWP900 CASE COMP., TRANSMISSION 1
3 21395KWP900 GASKET, TRANSMISSION CASE 1
4 23411KWP900 DRIVESHAFT(20T) 1
5 23421GCC000 COUNTERSHAFT(13T) 1
6 23422GCC000 GEAR, COUNTERSHAFT(50T) 1
7 23430KWP900 GEAR COMP., FINAL(49T) 1
8 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
9 91008KWP901 BEARING, RADIAL BALL, 6004UU 1
10 91203KPL901 OIL SEAL, 14X20X3.2 1
11 91255KPL901 OIL SEAL, 27X42X7 1
12 957010603000 BOLT, FLANGE, 6X30 4
13 957020603000 BOLT, FLANGE, 6X30 4
14 957010604000 BOLT, FLANGE, 6X40 3
15 957020604000 BOLT, FLANGE, 6X40 3
16 91006KWP901 BEARING, RADIAL BALL, 6201(NSK) 1
17 961006301000 BEARING, RADIAL BALL, 6301 1
