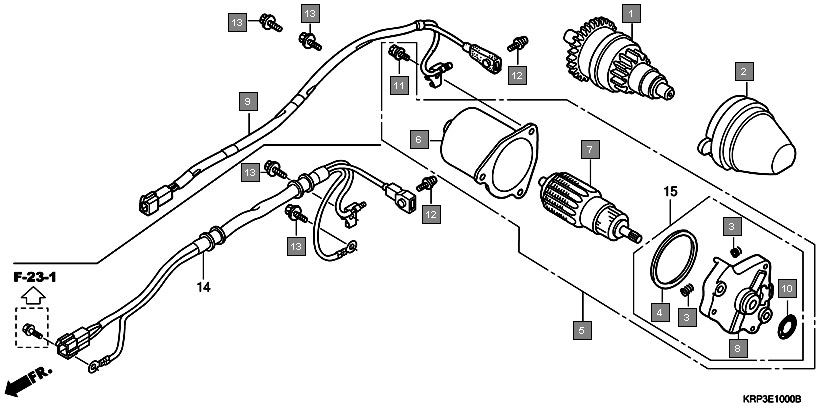

Scooters Aviator SCV110GC Engine Starting motor
Ref.No. Part No. Description Oty
1 28120KPL901 PINION ASSY., STARTER(14/40T) 1
2 28150KPL900 HOLDER COMP., STARTER PINION 1
3 31204KPL901 SPRING, BRUSH 2
4 31206KPL901 PACKING 1
5 31210KVT901 MOTOR UNIT, STARTING 1
6 31211KPL901 YOKE 1
7 31212KPL901 ARMATURE 1
8 31214KPL901 BRACKET COMP., FR. 1
9 91309KPL901 O-RING 1
10 934120501208 BOLT-WASHER, 5X12 3
11 938920400608 SCREW-WASHER, 4X6 1
12 960010603500 BOLT, FLANGE, 6X35 2
13 32105KVT940 HARNESS COMP., STARTING MOTOR 2
