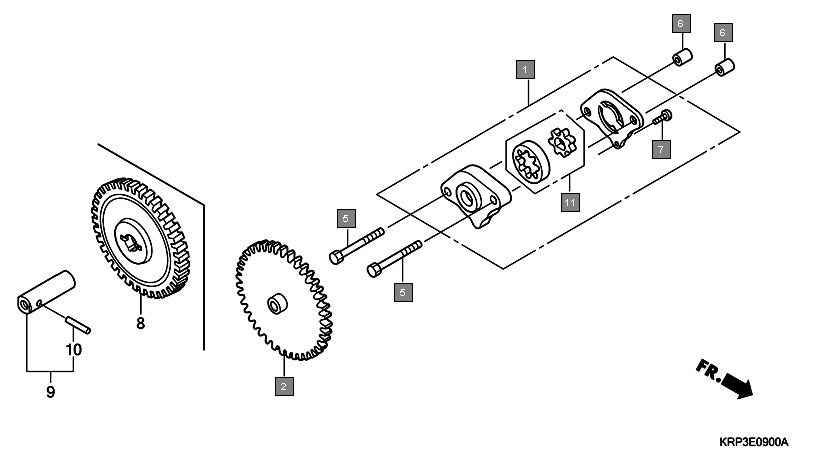

Scooters Aviator SCV110GC Engine Oil pump
Ref.No. Part No. Description Oty
1 15100KTP900 PUMP ASSY., OIL 1
2 90001KPL900 BOLT, HEX., 6X30 2
3 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
4 9390134120 SCREW, TAPPING, 4X8 1
5 15133KVY900 GEAR, OIL PUMP DRIVEN(39T) 1
6 15135KVY900 SHAFT COMP., OIL PUMP 1
7 9622030168 ROLLER, 3X16.8 1
8 15021436000 ROTOR SET, OIL PUMP 1
