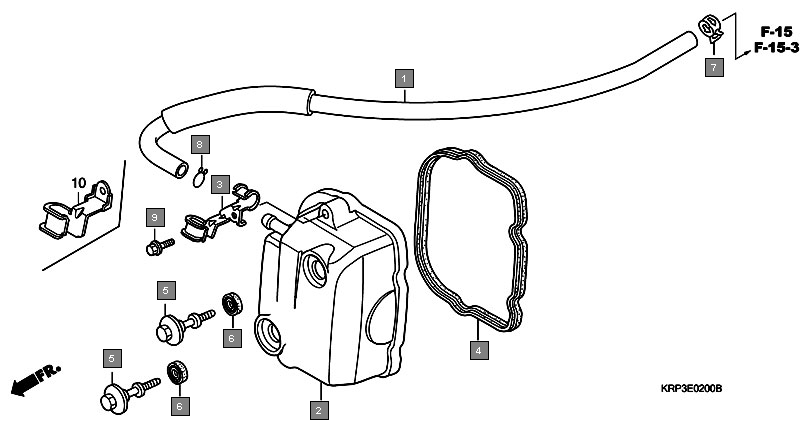

Scooters Aviator SCV110GC Engine Cylinder head cover
Ref.No. Part No. Description Oty
1 11211KWP900 TUBE, BREATHER 1
2 12310KWP901 COVER COMP., CYLINDER HEAD 1
3 12391KWP900 GASKET, CYLINDER HEAD COVER 1
4 90017KPL900 BOLT, HEAD COVER 2
5 90543MV9670 RUBBER, MOUNTING 2
6 90602KPL900 CLAMP, TUBE(D12.0) 1
7 9500202120 CLIP, TUBE(B12) 1
8 960010601400 BOLT, FLANGE, 6X14 1
9 12315KWP901 CLAMPER, THROTTLE CABLE 1
