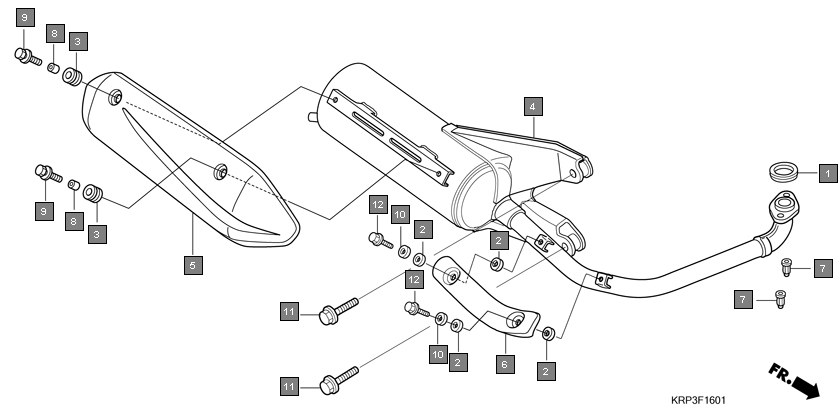

Scooters Aviator SCV110GA Frame Exhaust muffler(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 18292GY1610 GASKET, EX. PIPE 1
2 18292KTP900 PACKING, PROTECTOR 4
3 18293KVT900 RUBBER, PROTECTOR PACKING 2
4 18300KVT941 MUFFLER COMP., EX. 1
5 18318KVT900 PROTECTOR, MUFFLER 1
6 18319KVT940 PROTECTOR, EX. PIPE 1
7 90308KPL840 NUT, CAP, 6MM 2
8 90312KVT900 COLLAR, 9.5X10 2
9 934040602007 BOLT-WASHER, 6X20 2
10 9410106700 WASHER, PLAIN, 6MM 2
11 958011004007 BOLT, FLANGE, 10X40 2
12 958021004007 BOLT, FLANGE, 10X40 2
13 960010601007 BOLT, FLANGE, 6X10 2
