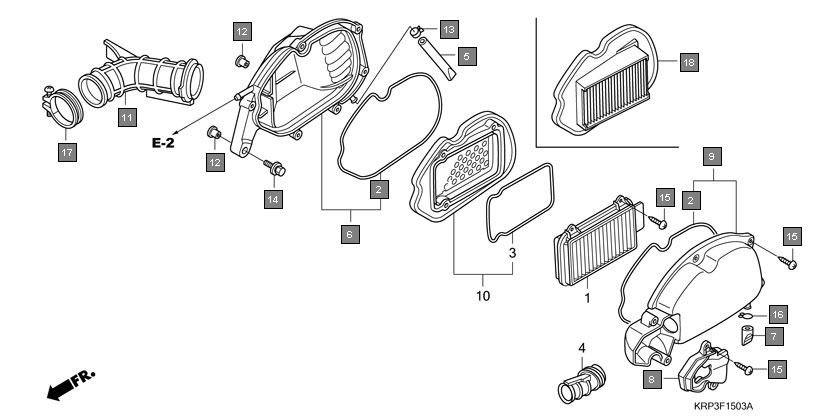

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 17212GEE000 | SEAL, AIR CLEANER COVER | 2 |
| 2 | 17216KVT940 | TUBE, DRAIN | 1 |
| 3 | 17225KVT940 | CASE SUB ASSY., AIR CLEANER | 1 |
| 4 | 17234KCC941 | TUBE, AIR CLEANER DRAIN | 1 |
| 5 | 17234KVT940 | COVER, AIR CLEANER DUCT | 1 |
| 6 | 17235KVT940 | COVER SUB ASSY., AIR CLEANER | 1 |
| 7 | 17253KWP900 | TUBE, AIR CLEANER CONNECTING | 1 |
| 8 | 50731KV3770 | COLLAR, PILLION STEP SETTING | 2 |
| 9 | 90602KPL900 | CLAMP, TUBE(D12.0) | 1 |
| 10 | 934040604007 | BOLT-WASHER, 6X40 | 2 |
| 11 | 9390325480 | SCREW, TAPPING, 5X20 | 8 |
| 12 | 9500202130 | CLIP, TUBE(B12.5) | 1 |
| 13 | 9501840250 | BAND, AIR CLEANER CONNECTINGTUBE(40) | 1 |
| 14 | 17210KVT940 | ELEMENT, AIR CLEANER | 1 |
