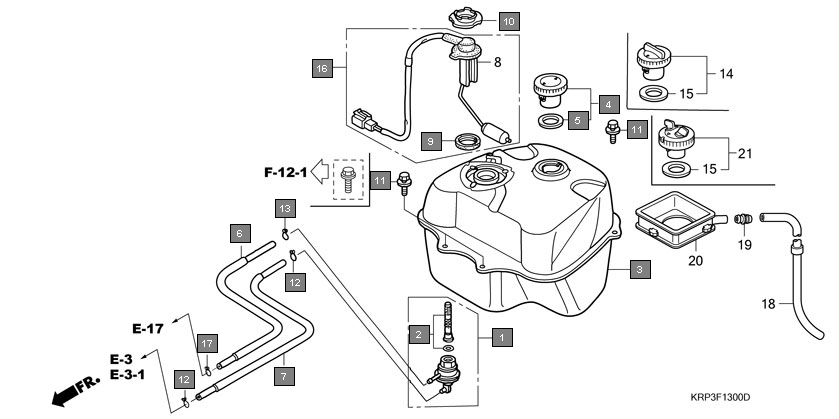

Scooters Aviator SCV110GA Frame Fuel tank
Ref.No. Part No. Description Oty
1 16950KRP981 COCK ASSY., FUEL 1
2 16952KRP980 SCREEN SET, FUEL STRAINER 1
3 17500KVT940 TANK COMP., FUEL 1
4 17500KVTD00 TANK COMP., FUEL 1
5 17683KVT940 TUBE COMP., FUEL 1
6 17684KVT940 TUBE COMP., VACUUM 1
7 37800KVT911 FUEL UNIT 1
8 37801GA7700 PACKING, BASE 1
9 37802GA7700 RETAINER, FUEL UNIT 1
10 934040601208 BOLT-WASHER, 6X12 4
11 9500202070 CLIP, TUBE(B7) 2
12 9500202080 CLIP, TUBE(B8) 1
13 17620KRP980 CAP COMP., FUEL FILLER 1
14 17632383831 PACKING, FUEL FILLER CAP 1
15 9500250000 CLIP, TUBE(C9) 1
16 17515KVT900 TUBE, 8X12X480 1
17 17525KTP900 JOINT, FUEL TUBE 1
18 17525KVT900 TRAY, FUEL 1
