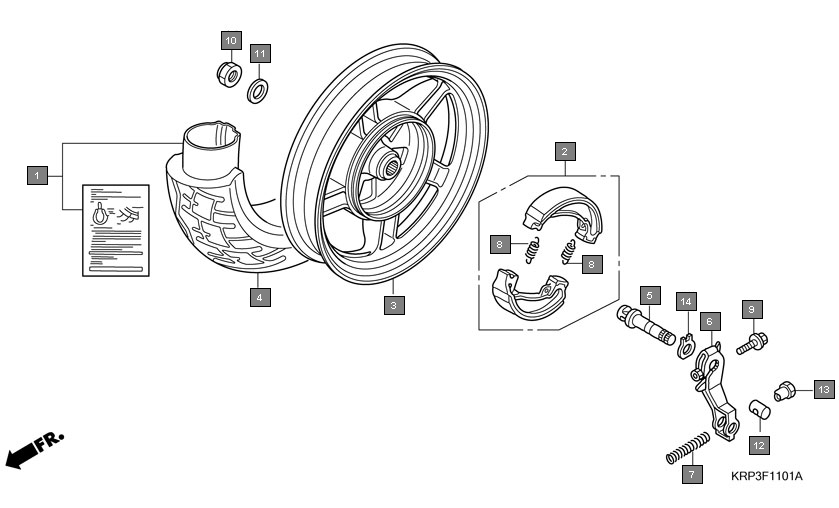

Scooters Aviator SCV110GA Frame Rear wheel(2)
Ref.No. Part No. Description Oty
1 06427KPL840 TUBE SET, TUFF UP 1
2 06430KTN700 SHOE SET, BRAKE(JB) 1
3 42601KVT911 WHEEL COMP., RR. 1
4 42711KWP911 TYRE(MRF)(90/100-10 53J) 1
5 43141KVT960 CAM, RR. BRAKE 1
6 43410KWP900 ARM, RR. BRAKE 1
7 43472KPL900 SPRING, RR. BRAKE ARM 1
8 45133KCC900 SPRING, FR. BRAKE SHOE (FOR RR.) 2
9 90112KPL900 BOLT, FLANGE, 6X30 1
10 90305KWP901 NUT, HEX., 16MM 1
11 90501KPL900 WASHER, 16MM 1
12 9501532001 JOINT B, BRAKE ARM 1
13 9501542000 NUT B, BRAKE ROD ADJUSTING 1
14 43142KAS890 SEAT, RR. BRAKE CAM 1
