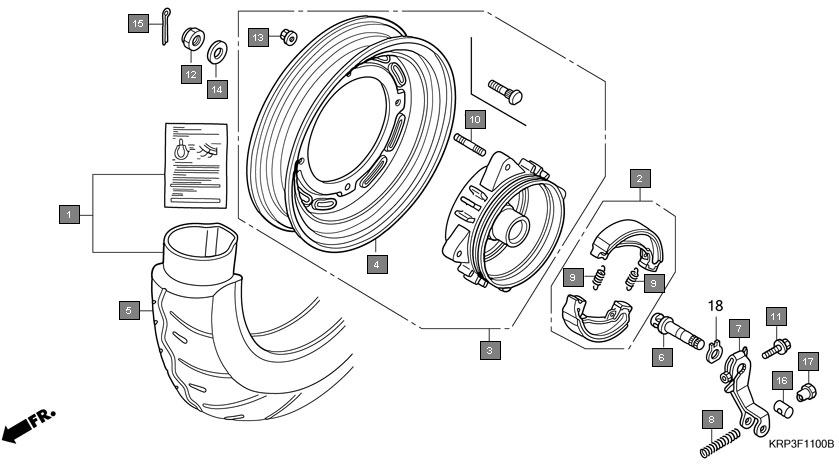

Scooters Aviator SCV110GA Frame Rear wheel(1)
Ref.No. Part No. Description Oty
1 06430KWP900 SHOE SET, BRAKE(JB) 1
2 42650KWP900 WHEEL SUB ASSY., RR. 1
3 42711KWP911 TYRE(MRF)(90/100-10 53J) 1
4 43141KVT900 CAM, RR. BRAKE 1
5 43410KWP900 ARM, RR. BRAKE 1
6 43472KPL900 SPRING, RR. BRAKE ARM 1
7 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
8 90112KPL900 BOLT, FLANGE, 6X30 1
9 90305KWP901 NUT, HEX., 16MM 1
10 90309KPL900 NUT, SPECIAL FLANGE, 8MM 4
11 90304KST942 NUT, FLANGE, 10MM (LEO FASTENERS) 4
12 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 4
13 90501KPL900 WASHER, 16MM 1
14 9501532001 JOINT B, BRAKE ARM 1
15 9501542000 NUT B, BRAKE ROD ADJUSTING 1
16 43142KAS890 SEAT, RR. BRAKE CAM 1
