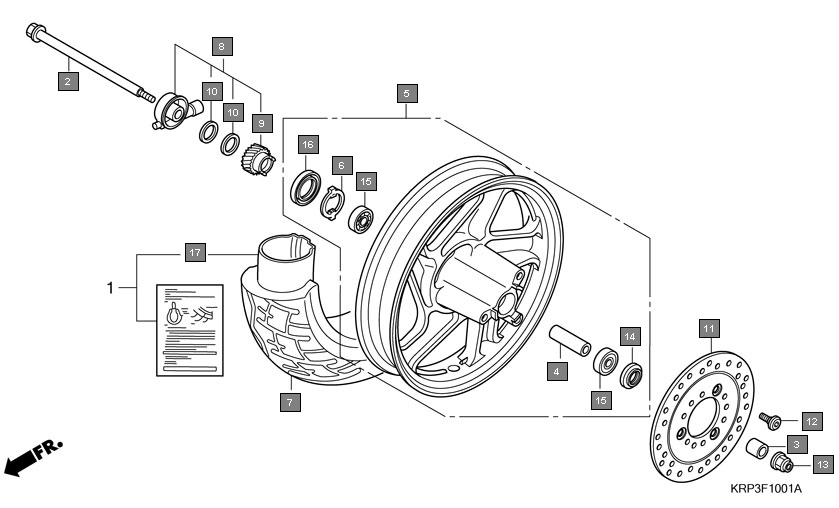

Scooters Aviator SCV110GA Frame Front wheel(disk brake)(1)
Ref.No. Part No. Description Oty
1 44301KTR700 AXLE, FR. WHEEL 1
2 44311KVT910 COLLAR, FR. WHEEL SIDE 1
3 44620KVT910 COLLAR, FR. WHEEL DISTANCE 1
4 44650KVT960 WHEEL SUB ASSY., FR. 1
5 44680410000 RETAINER, GEAR BOX 1
6 44711KVT901 TIRE, FR.(MRF)(90/90-12) 1
7 44800KVT910ZA BOX ASSY., SPEEDOMETER GEAR *NH35M* CLOUD SILVER METALLIC 1
8 44804KVT910 GEAR, SPEEDOMETER 1
9 44809KPL900 WASHER, SPEEDOMETER GEAR 1
10 45351KVT911 DISK, L. FR. BRAKE 1
11 90105KSP870 BOLT, DISK, 8X24 3
12 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
13 90306KST942 NUT, FLANGE, 12MM (LEO FASTENERS) 1
14 90754KPL900 SEAL, DUST, 20X32X5 1
15 90912KPL900 BEARING, RADIAL BALL, 6201U 1
16 91258410013 DUST SEAL, 40X50X5(ARAI) 1
17 44712KVT941 TUBE, TYRE(MRF)(90/90-12) 1
