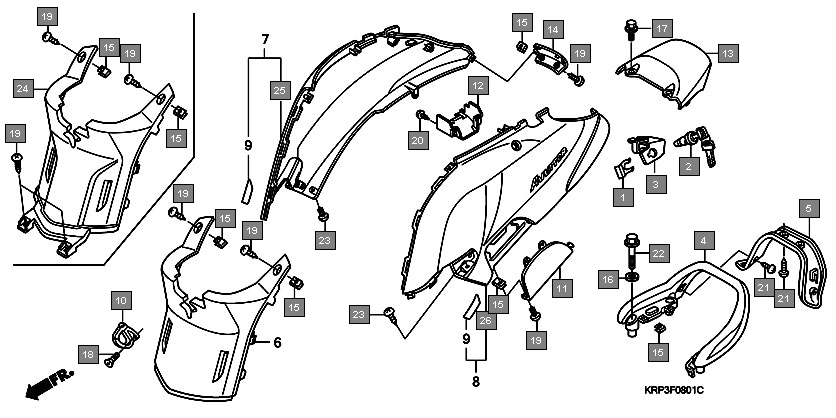

Scooters Aviator SCV110GA Frame Body cover(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 75582KCW870 SPRING, LOCK KEY SETTING 1
2 77239KPL841 KEY, SEAT LOCK 1
3 77241KVT900 STAY, SEAT LOCK 1
4 77300KVT900ZA GRIP, RR. *NH35M* CLOUD SILVER METALLIC 1
5 77300KVT900ZB GRIP, RR. *NHB04M* MONSOON GRAY METALLIC 1
6 77300KVT900ZC GRIP, RR. *NHB05P* PEARL IGNEOUS BLACK 1
7 77300KVT900ZE GRIP, RR. *R329M* REBEL RED METALLIC 1
8 77300KVT900ZD GRIP, RR. *PB332P* PEARL HERON BLUE 1
9 77300KVT900ZF GRIP, RR. *YR302M* NEO ORANGE METALLIC 1
10 77301KVT900 COVER, RR. GRIP 1
11 83508KPL900 HOOK, LUGGAGE 1
12 83520KVT900ZB COVER, MAINTENANCE AIR CLEANER *NHB05P* PEARL IGNEOUS BLACK 1
13 83520KVT900ZE COVER, MAINTENANCE AIR CLEANER *R329M* REBEL RED METALLIC 1
14 83520KVT900ZA COVER, MAINTENANCE AIR CLEANER *NHB04M* MONSOON GRAY METALLIC 1
15 83520KVT900ZF COVER, MAINTENANCE AIR CLEANER *PB332P* PEARL HERON BLUE 1
16 83520KVT900ZG COVER, MAINTENANCE AIR CLEANER *YR302M* NEO ORANGE METALLIC 1
17 83530KVT900 COVER, SEAT LOCK CABLE 1
18 83700KVT900ZB COVER SET, RR. CENTER(WL) *NHB05P* PEARL IGNEOUS BLACK 1
19 83700KVT900ZE COVER SET, RR. CENTER(WL) *R329M* REBEL RED METALLIC 1
20 83700KVT900ZA COVER SET, RR. CENTER(WL) *NHB04M* MONSOON GRAY METALLIC 1
21 83700KVT900ZF COVER SET, RR. CENTER(WL) *PB332P* PEARL HERON BLUE 1
22 83700KVT900ZG COVER SET, RR. CENTER(WL) *YR302M* NEO ORANGE METALLIC 1
23 83751KVT900ZB COVER, RR. CENTER LOWER *NHB05P* PEARL IGNEOUS BLACK 1
24 83751KVT900ZE COVER, RR. CENTER LOWER *R329M* REBEL RED METALLIC 1
25 83751KVT900ZA COVER, RR. CENTER LOWER 1
26 83751KVT900ZF COVER, RR. CENTER LOWER *PB332P* PEARL HERON BLUE 1
27 83751KVT900ZG COVER, RR. CENTER LOWER *YR302M* NEO ORANGE METALLIC 1
28 90344KRP900 NUT, CLIP, 5MM 11
29 90505KY4900 WASHER, PLAIN, 8MM 4
30 934040601207 BOLT-WASHER, 6X12 2
31 93600050160G SCREW, FLAT, 5X16 2
32 9390325380 SCREW, TAPPING, 5X16 5
33 9390334320 SCREW, TAPPING, 4X12 2
34 9390334380 SCREW, TAPPING, 4X12 4
35 957010804000 BOLT, FLANGE, 8X40 4
36 957020804000 BOLT, FLANGE, 8X40 4
37 91509GE2760 SCREW, PAN, 5X11.5 4
38 80151KVT940ZA COVER, CENTER *NH1* BLACK 1
39 83100KVT900ZA COVER SET, R. BODY(WL) *NHB04M* MONSOON GRAY METALLIC 1
40 83100KVT900ZB COVER SET, R. BODY(WL) *NHB05P* PEARL IGNEOUS BLACK 1
41 83100KVT900ZE COVER SET, R. BODY(WL) *R329M* REBEL RED METALLIC 1
42 83100KVT900ZF COVER SET, R. BODY(WL) *PB332P* PEARL HERON BLUE 1
43 83100KVT900ZG COVER SET, R. BODY(WL) *YR302M* NEO ORANGE METALLIC 1
44 83200KVT901ZA COVER SET, L. BODY(WL) *NHB04M* MONSOON GRAY METALLIC 1
45 83200KVT901ZB COVER SET, L. BODY(WL) *NHB05P* PEARL IGNEOUS BLACK 1
46 83200KVT901ZE COVER SET, L. BODY(WL) *R329M* REBEL RED METALLIC 1
47 83200KVT901ZF COVER SET, L. BODY(WL) *PB332P* PEARL HERON BLUE 1
48 83200KVT901ZG COVER SET, L. BODY(WL) *YR302M* NEO ORANGE METALLIC 1
