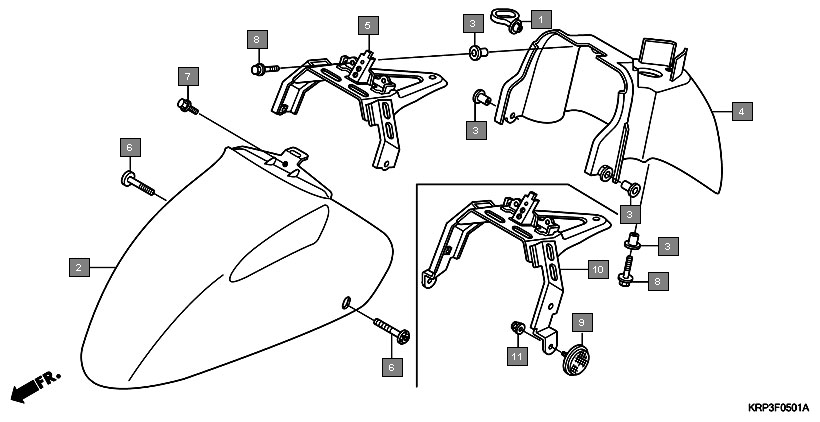

Scooters Aviator SCV110GA Frame Front fender(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 45451471000 GROMMET, WIRE 1
2 61100KVT900ZZ FENDER A, FR. 1
3 61103KRY900 COLLAR A, FR. FENDER 5
4 61120KVT960ZA FENDER B, FR. *NH1* BLACK 1
5 61120KVT940ZA FENDER B, FR. *NH1* BLACK 1
6 61300KVT900 STAY COMP., FR. FENDER 1
7 90113KVT901 BOLT, SPECIAL HEX., 6X20 2
8 957010601208 BOLT, FLANGE, 6X12 1
9 957020601208 BOLT, FLANGE, 6X12 1
10 957010602008 BOLT, FLANGE, 6X20 3
11 957020602008 BOLT, FLANGE, 6X20 3
