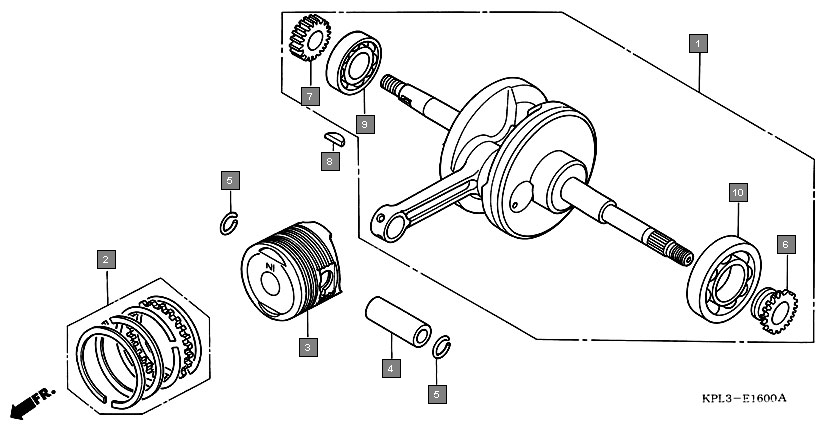

Scooters Aviator SCV110GA Engine Crankshaft/piston
Ref.No. Part No. Description Oty
1 13000KWP900 CRANKSHAFT COMP. 1
2 13011KWP900 RING SET, PISTON(STD.) 1
3 13012KWP900 RING SET, PISTON(0.25) 1
4 13013KWP900 RING SET, PISTON(0.50) 1
5 13014KWP900 RING SET, PISTON(0.75) 1
6 13015KWP900 RING SET, PISTON(1.00) 1
7 13101KWP900 PISTON(STD.) 1
8 13102KWP900 PISTON(0.25) 1
9 13103KWP900 PISTON(0.50) 1
10 13104KWP900 PISTON(0.75) 1
11 13105KWP900 PISTON(1.00) 1
12 13111087000 PIN, PISTON 1
13 13115001000 CLIP, PISTON PIN 2
14 90741KPL900 KEY, WOODRUFF 1
