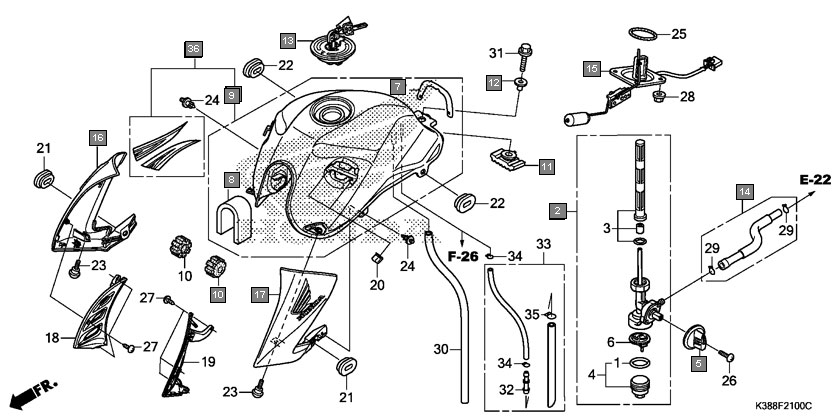

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16955K38900 | LEVER, FUEL COCK | 1 |
| 2 | 17519K38900 | FILM, TANK PROTECTOR | 1 |
| 3 | 17529K38900 | SILENCER SEAT, FUEL TANK | 1 |
| 4 | 17530K38940ZC | TANK SUB ASSY., FUEL*TYPE1* | 1 |
| 5 | 17530K38940ZA | TANK SUB ASSY., FUEL*TYPE3* | 1 |
| 6 | 17530K38940ZB | TANK SUB ASSY., FUEL*TYPE2* | 1 |
| 7 | 17611KRY970 | CUSHION, FR. FUEL TANK | 2 |
| 8 | 17613KWS900 | RUBBER, FUEL TANK RR. | 1 |
| 9 | 17614K38900 | COLLAR, FUEL TANK | 1 |
| 10 | 17620KWF901 | CAP COMP., FUEL FILLER | 1 |
| 11 | 17681K43900 | TUBE, FUEL | 1 |
| 12 | 17681K38900 | TUBE, FUEL | 1 |
| 13 | 37800K38941 | FUEL UNIT | 1 |
| 14 | 37800K38901 | FUEL UNIT | 1 |
| 15 | 50265K38900ZE | SHROUD SET, R.(WL) *NHB63P* PEARL AMAZING WHITE | 1 |
| 16 | 50265K38900ZA | SHROUD SET, R.(WL) *R355M* IMPERIAL RED METALLIC | 1 |
| 17 | 50265K38600ZB | SHROUD SET, R.(WL)*B227M* *TYPE1* | 1 |
| 18 | 50265K38900ZB | SHROUD SET, R.(WL) *NHB05P* PEARL IGNEOUS BLACK | 1 |
| 19 | 50265K38600ZA | SHROUD SET, R.(WL)*B227M* *TYPE2* | 1 |
| 20 | 50265K38900ZG | SHROUD SET, R.(WL)*B227M* MAT MARVEL BLUE METALLIC | 1 |
| 21 | 50275K38900ZA | SHROUD SET, L.(WL) *R355M* IMPERIAL RED METALLIC | 1 |
| 22 | 50275K38900ZE | SHROUD SET, L.(WL) *NHB63P* PEARL AMAZING WHITE | 1 |
| 23 | 50275K38900ZB | SHROUD SET, L.(WL) *NHB05P* PEARL IGNEOUS BLACK | 1 |
| 24 | 50275K38900ZG | SHROUD SET, L.(WL)*B227M* MAT MARVEL BLUE METALLIC | 1 |
| 25 | 50275K38600ZB | SHROUD SET, L.(WL) *B227M* *TYPE1* | 1 |
| 26 | 50275K38600ZA | SHROUD SET, L.(WL)*B227M* *TYPE2* | 1 |
| 27 | 50280K38900 | SHROUD, R. INNER | 1 |
| 28 | 50285K38900 | SHROUD, L. INNER | 1 |
| 29 | 77267KTR900 | RUBBER, COWL | 4 |
| 30 | 83551GE2000 | GROMMET, AIR CLEANER CASE | 2 |
| 31 | 83551300000 | GROMMET, AIR CLEANER CASE | 2 |
| 32 | 90104KT2000 | SCREW, SPECIAL, 6X14 | 2 |
| 33 | 90116SP0003 | CLIP, BUMPER SEAL | 2 |
| 34 | 91351K21900 | O-RING, 39.5X5 | 1 |
| 35 | 93500040250G | SCREW, PAN, 4X25 | 1 |
| 36 | 9390324380 | SCREW, TAPPING, 4X12 | 6 |
| 37 | 9405006000 | NUT, FLANGE, 6MM | 4 |
| 38 | 9500202100 | CLIP, TUBE(B10) | 2 |
| 39 | 950058078020 | TUBE, 8X780 | 1 |
| 40 | 957010803000 | BOLT, FLANGE, 8X30 | 1 |
| 41 | 17525KVE900 | JOINT, TUBE | 1 |
| 42 | 17535K38900 | TUBE ASSY., BREATHER | 1 |
| 43 | 9500202080 | CLIP, TUBE(B8) | 2 |
| 44 | 9500202130 | CLIP, TUBE(B12.5) | 1 |
| 45 | 17530K38600ZA | TANK SUB ASSY., FUEL(WL) *TYPE2* | 1 |
| 46 | 17530K38600ZB | TANK SUB ASSY., FUEL(WL) *TYPE1* | 1 |
| 47 | 16950K38901 | COCK ASSY., FUEL (UCAL) | 1 |
| 48 | 16950K38902 | COCK ASSY., FUEL (A) | 1 |
