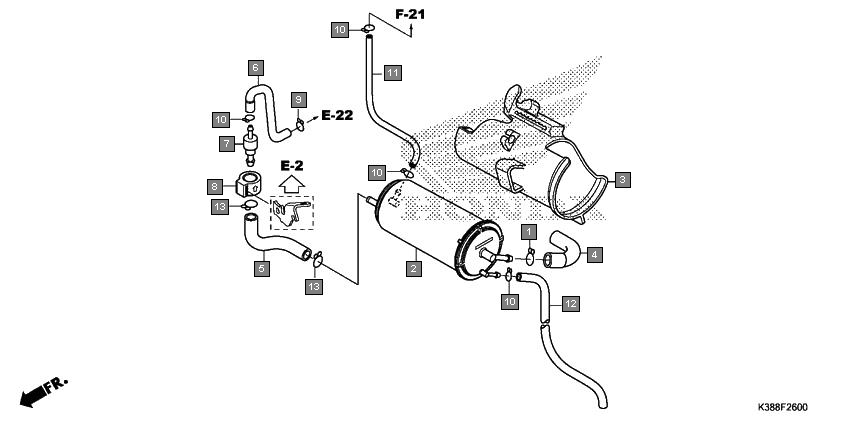

Motorcycles CB Unicorn 160 CBF160H Frame Canister
Ref.No. Part No. Description Oty
1 16163K43900 CLIP 1
2 17310K38941 CANISTER COMP. 1
3 17311K38940 RUBBER, CANISTER 1
4 17412K43901 TUBE, AIR 1
5 17413K38940 TUBE, CANISTER PURGE 1
6 17417K38940 TUBE, CARBURETOR PURGE 1
7 17440K43901 VALVE, ONE WAY 1
8 17441K43900 RUBBER, ONE WAY VALVE 1
9 90651KWPF00 CLIP, TUBE(B7) 1
10 90652KWPF00 CLIP, TUBE(B8) 4
11 950014530040 TUBE, FUEL, 4.5X300 (95001-45001-60M) 1
12 950014553040 TUBE, FUEL, 4.5X530 (95001-45001-60M) 1
13 9500202120 CLIP, TUBE(B12) 2
