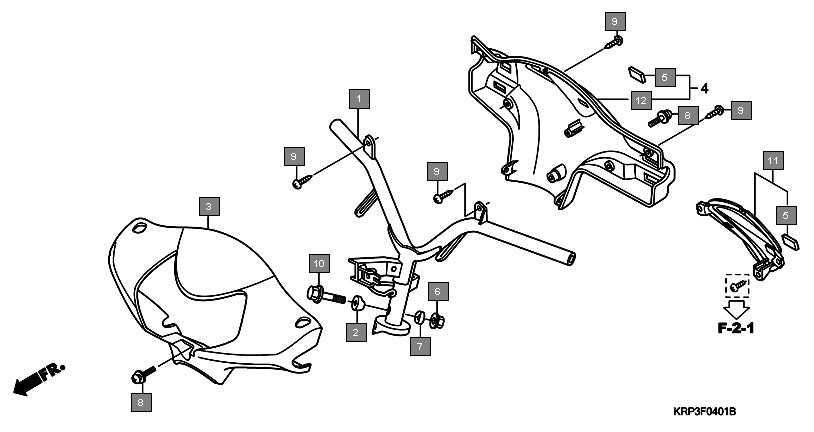

Scooters Aviator SCV110GFD Frame Steering handle/handle cover(2)
Ref.No. Part No. Description Oty
1 53100KVT960 HANDLE COMP., STEERING 1
2 53124KCW870 COLLAR, HANDLE SETTING 1
3 53205KVT900ZB COVER, FR. HANDLE *NHB05P* PEARL IGNEOUS BLACK 1
4 53205KVT900ZE COVER, FR. HANDLE *R329M* REBEL RED METALLIC 1
5 53205KVT900ZH COVER, FR. HANDLE *NHA66P* PEARL SUNBEAM WHITE 1
6 53205KVT900ZJ COVER, FR. HANDLE *YR258M* ROYAL GOLD METALLIC 1
7 86150KWS601 EMBLEM, PRODUCT(SJS) 1
8 90304KCS920 NUT, U, 10MM 1
9 90304KGH901 NUT, U, 10MM 1
10 90502KVT900 COLLAR B, HANDLE SETTING 1
11 938910501607 SCREW-WASHER, 5X16 2
12 9390334380 SCREW, TAPPING, 4X12 6
13 958011005508 BOLT, FLANGE, 10X55 1
14 958021005508 BOLT, FLANGE, 10X55 1
15 53208KVT970ZA COVER COMP., METER GARNISH *NH411M* FORCE SILVER METALLIC 1
16 53206KVT960ZB COVER, HANDLE RR.*NHB05P* PEARL IGNEOUS BLACK 1
17 53206KVT960ZD COVER, HANDLE RR.*R329M* REBEL RED METALLIC 1
18 53206KVT960ZG COVER, HANDLE RR. *NHA66P* PEARL SUNBEAM WHITE 1
19 53206KVT960ZH COVER, HANDLE RR. *YR258M* ROYAL GOLD METALLIC 1
