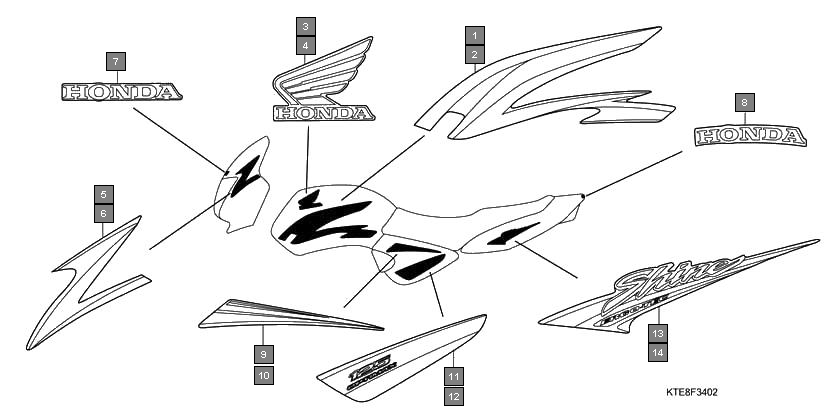

Motorcycles CB Shine CBF125C9 Frame Mark(cbf125c9/mc9)
Ref.No. Part No. Description Oty
1 17507KTE850ZA STRIPE, R. FUEL TANK *TYPE1* 1
2 17507KTE850ZB STRIPE, R. FUEL TANK *TYPE2* 1
3 17507KTE850ZC STRIPE, R. FUEL TANK *TYPE3* 1
4 17507KTE850ZD STRIPE, R. FUEL TANK *TYPE4* 1
5 17507KTE850ZE STRIPE, R. FUEL TANK *TYPE5* 1
6 17508KTE850ZA STRIPE, L. FUEL TANK *TYPE1* 1
7 17508KTE850ZB STRIPE, L. FUEL TANK *TYPE2* 1
8 17508KTE850ZC STRIPE, L. FUEL TANK *TYPE3* 1
9 17508KTE850ZD STRIPE, L. FUEL TANK *TYPE4* 1
10 17508KTE850ZE STRIPE, L. FUEL TANK *TYPE5* 1
11 17521KTE850ZA MARK, R. FUEL TANK WING *TYPE1* 1
12 17521KTE850ZB MARK, R. FUEL TANK WING *TYPE2* 1
13 17521KTE850ZC MARK, R. FUEL TANK WING *TYPE3* 1
14 17521KTE950ZC MARK, R. FUEL TANK WING *TYPE3* 1
15 17521KTE950ZD MARK, R. FUEL TANK WING *TYPE4* 1
16 17522KTE850ZA MARK, L. FUEL TANK WING *TYPE1* 1
17 17522KTE850ZB MARK, L. FUEL TANK WING *TYPE2* 1
18 17522KTE850ZC MARK, L. FUEL TANK WING *TYPE3* 1
19 17522KTE950ZC MARK, L. FUEL TANK WING *TYPE3* 1
20 17522KTE950ZD MARK, L. FUEL TANK WING *TYPE4* 1
21 61306KTE850ZA STRIPE, R. FR. VISOR *TYPE1* 1
22 61306KTE850ZB STRIPE, R. FR. VISOR *TYPE2* 1
23 61306KTE850ZC STRIPE, R. FR. VISOR *TYPE3* 1
24 61306KTE850ZD STRIPE, R. FR. VISOR *TYPE4* 1
25 61306KTE850ZE STRIPE, R. FR. VISOR *TYPE5* 1
26 61307KTE850ZA STRIPE, L. FR. VISOR *TYPE1* 1
27 61307KTE850ZB STRIPE, L. FR. VISOR *TYPE2* 1
28 61307KTE850ZC STRIPE, L. FR. VISOR *TYPE3* 1
29 61307KTE850ZD STRIPE, L. FR. VISOR *TYPE4* 1
30 61307KTE850ZE STRIPE, L. FR. VISOR *TYPE5* 1
31 61308KTE950ZA MARK, FR. VISOR *TYPE1* 1
32 77228KTE950ZA MARK, RR. CENTER COWL *TYPE1* 1
33 83503KTE850ZA STRIPE A, R. SIDE COVER *TYPE1* 1
34 83503KTE850ZB STRIPE A, R. SIDE COVER *TYPE2* 1
35 83503KTE850ZC STRIPE A, R. SIDE COVER *TYPE3* 1
36 83503KTE850ZD STRIPE A, R. SIDE COVER *TYPE4* 1
37 83503KTE850ZE STRIPE A, R. SIDE COVER *TYPE5* 1
38 83603KTE850ZA STRIPE A, L. SIDE COVER 1
39 83603KTE850ZB STRIPE A, L. SIDE COVER *TYPE2* 1
40 83603KTE850ZC STRIPE A, L. SIDE COVER *TYPE3* 1
41 83603KTE850ZD STRIPE A, L. SIDE COVER *TYPE4* 1
42 83603KTE850ZE STRIPE A, L. SIDE COVER *TYPE5* 1
43 83610KTE850ZA STRIPE B, R. SIDE COVER *TYPE1* 1
44 83610KTE850ZB STRIPE B, R. SIDE COVER *TYPE2* 1
45 83610KTE850ZC STRIPE B, R. SIDE COVER *TYPE3* 1
46 83610KTE850ZD STRIPE B, R. SIDE COVER *TYPE4* 1
47 83610KTE850ZE STRIPE B, R. SIDE COVER *TYPE5* 1
48 83710KTE850ZA STRIPE B, L. SIDE COVER *TYPE1* 1
49 83710KTE850ZB STRIPE B, L. SIDE COVER *TYPE2* 1
50 83710KTE850ZC STRIPE B, L. SIDE COVER *TYPE3* 1
51 83710KTE850ZD STRIPE B, L. SIDE COVER *TYPE4* 1
52 83710KTE850ZE STRIPE B, L. SIDE COVER *TYPE5* 1
53 87116KTE850ZA STRIPE, R. RR. COWL *TYPE1* 1
54 87116KTE850ZB STRIPE, R. RR. COWL *TYPE2* 1
55 87116KTE850ZC STRIPE, R. RR. COWL *TYPE3* 1
56 87116KTE850ZD STRIPE, R. RR. COWL *TYPE4* 1
57 87116KTE850ZE STRIPE, R. RR. COWL *TYPE5* 1
58 87117KTE850ZA STRIPE, L. RR. COWL *TYPE1* 1
59 87117KTE850ZB STRIPE, L. RR. COWL *TYPE2* 1
60 87117KTE850ZC STRIPE, L. RR. COWL *TYPE3* 1
61 87117KTE850ZD STRIPE, L. RR. COWL *TYPE4* 1
62 87117KTE850ZE STRIPE, L. RR. COWL *TYPE5* 1
