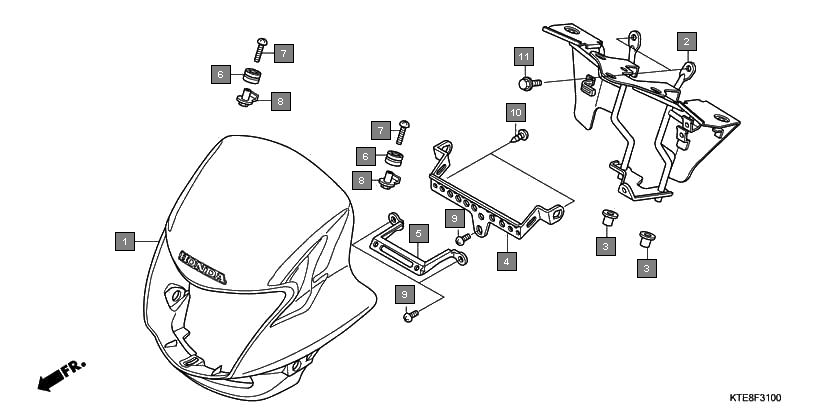

Motorcycles CB Shine CBF125C9 Frame Front cowl(1)
Ref.No. Part No. Description Oty
1 61300KTE850ZA VISOR SET, FR.(WL) *TYPE1* 1
2 61300KTE850ZB VISOR SET, FR.(WL) *TYPE2* 1
3 61300KTE850ZC VISOR SET, FR.(WL) *TYPE3* 1
4 61300KTE850ZD VISOR SET, FR.(WL) *TYPE4* 1
5 61300KTE850ZE VISOR SET, FR.(WL) *TYPE5* 1
6 61311KTE910 STAY, FR. COWL 1
7 61312149300 BOOT, HEADLIGHT BRACKET 2
8 61315KTE911 STAY, FR. WINKER 1
9 64315KTE910 STAY, FR. NUMBER PLATE 1
10 64615KR1860 RUBBER, LOWER COWL MOUNTING 2
11 90001GW2000 SCREW, TRUSS, 6X20 2
12 90310KTE910 NUT, FR. COWL 2
13 93500060120A SCREW, PAN, 6X12 3
14 9390324320 SCREW, TAPPING, 4X12 2
15 960010601200 BOLT, FLANGE, 6X12 2
