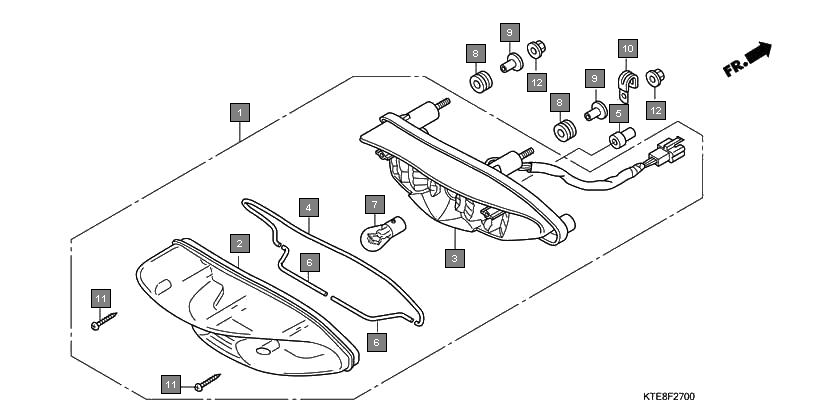

Motorcycles CB Shine CBF125C9 Frame Taillight(1)
Ref.No. Part No. Description Oty
1 33701KTE910 TAILLIGHT UNIT 1
2 33703KTE910 LENS COMP., TAILLIGHT 1
3 33704KTE910 BASE COMP., TAILLIGHT 1
4 33705KTE910 PACKING, LENS 1
5 33706KTE910 GROMMET, TAILLIGHT 1
6 33707KTE910 PACKING, LENS 2
7 34906KRB900 BULB, TAILLIGHT(12V 21/5W) 1
8 61103357000 RUBBER, FR. FENDER MOUNTING 2
9 61104KM7910 COLLAR, FAIRING SETTING 2
10 90651KTE910 CLIP, 4X50 1
11 9390324580 SCREW, TAPPING, 4X20 2
12 9405005000 NUT, FLANGE, 5MM 2
