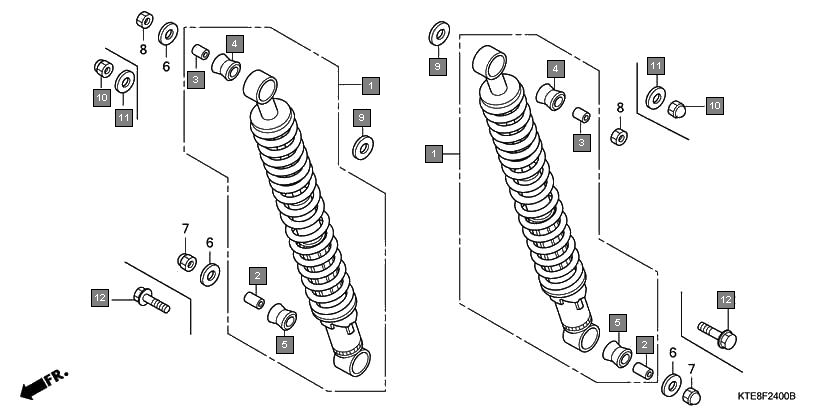

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 52400KTE951 | CUSHION ASSY., RR. | 2 |
2 | 52486KAG901 | COLLAR, RUBBER BUSH | 2 |
3 | 52486056000 | COLLAR, RR. CUSHION RUBBER BUSH | 2 |
4 | 52489399601 | BUSH, UPPER RUBBER | 2 |
5 | 52495098000 | BUSH, RUBBER | 2 |
6 | 90551KTE910 | WASHER, SPECIAL, 10MM | 3 |
7 | 94021100200S | NUT, CAP, 10MM | 2 |
8 | 9403010000 | NUT, HEX., 10MM | 2 |
9 | 9410112000 | WASHER, PLAIN, 12MM | 2 |
