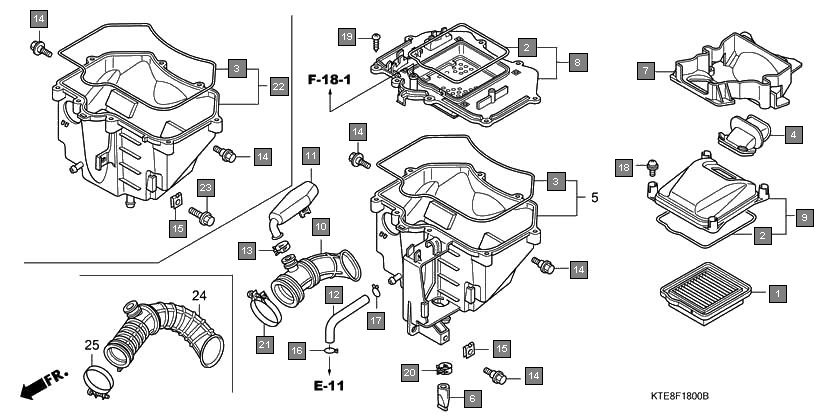

Motorcycles CB Shine CBF125C9 Frame Air cleaner
Ref.No. Part No. Description Oty
1 17211KTE910 ELEMENT COMP., AIR CLEANER 1
2 17214KTE910 SEAL B, AIR CLEANER 2
3 17215KSP900 SEAL A, AIR CLEANER 1
4 17219KTE910 DUCT, AIR CLEANER 1
5 17225KTE910 CASE SUB ASSY., AIR CLEANER 1
6 17227KTE910 TUBE, VINYL, 11X15X40 1
7 17234KTE910 COVER, AIR CLEANER DUCT 1
8 17235KTE910 HOLDER SUB ASSY., AIR CLEANER 1
9 17245KTE910 COVER SUB ASSY., AIR CLEANER 1
10 17253KTE910 TUBE, AIR CLEANER CONNECTING 1
11 17311KTE911 RESONATOR 1
12 17371KTE910 TUBE, BREATHER 1
13 19509GE2003 CLAMP, TUBE(D19) 1
14 90111162000 BOLT, FLANGE, 6MM 3
15 90320KTE910 NUT, SPRING, 6MM 1
16 90651KM9000 CLIP, TUBE(B14) 1
17 90651MK3780 CLIP, TUBE(B12.5) 1
18 938930501600 SCREW-WASHER, 5X16 4
19 9390325380 SCREW, TAPPING, 5X16 8
20 91406KFN850 CLAMP, TUBE(D14.5) 1
21 9501854251 BAND, AIR CLEANER CONNECTING TUBE(54) 1
22 17225KTE930 CASE SUB ASSY., AIR CLEANER 1
23 957010601000 BOLT, FLANGE, 6X10 1
