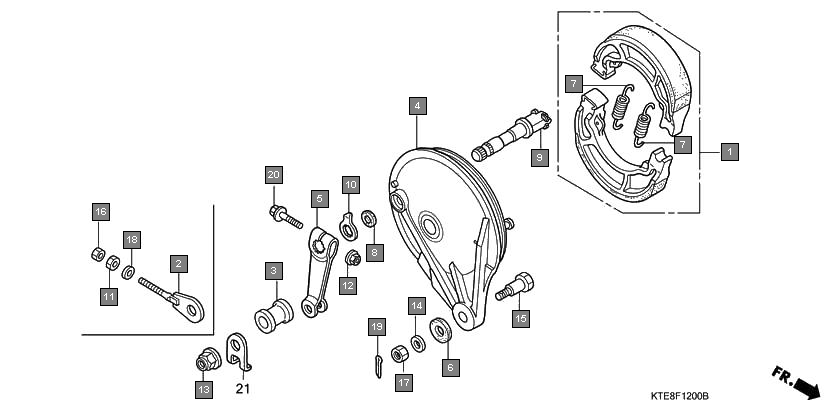

Motorcycles CB Shine CBF125C9 Frame Rear brake panel
Ref.No. Part No. Description Oty
1 06430KRP980 SHOE SET, BRAKE(ASK) 1
2 06430KTN700 SHOE SET, BRAKE(JB) 1
3 40543KTE910 ADJUSTER COMP., R. CHAIN 1
4 42313KTE910 COLLAR, RR. BRAKE PANEL SIDE 1
5 43100KTE950ZA PANEL COMP., RR. BRAKE *NH303M* MAT AXIS GRAY METALLIC 1
6 43410KCT690 ARM, RR. BRAKE 1
7 43434ME1670 RUBBER, STOPPER ARM 1
8 45133KCC900 SPRING, FR. BRAKE SHOE (FOR RR.) 2
9 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
10 45134250000 DUST SEAL, BRAKE CAM 1
11 45141KTC900 CAM, FR. BRAKE 1
12 45145KFM900 INDICATOR, FR. BRAKE (FOR RR.) 1
13 90302KBP900 NUT, SPECIAL, 6MM 1
14 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 1
15 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
16 90505425000 WASHER, 8MM 1
17 9281110000 BOLT A, BRAKE STOPPER 1
18 94001060000S NUT, HEX., 6MM 1
19 94001080000S NUT, HEX., 8MM 1
20 9410106000 WASHER, PLAIN, 6MM 1
21 9420120150 PIN, SPLIT, 2.0X15 1
22 957010603500 BOLT, FLANGE, 6X35 1
