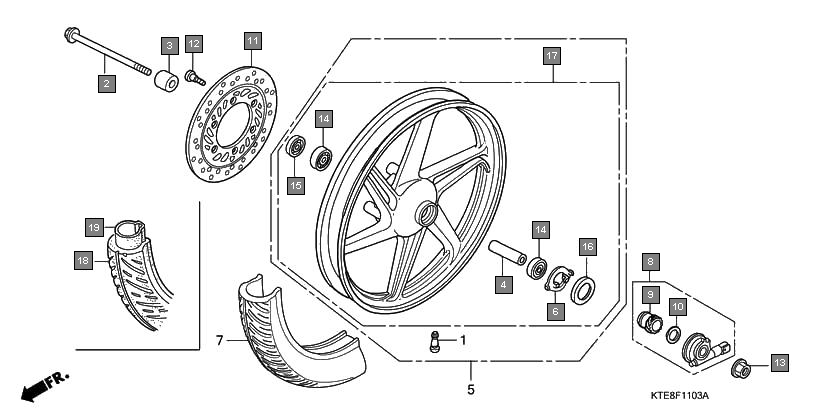

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 44301KPL900 | AXLE, FR. WHEEL | 1 |
2 | 44311KSP900 | COLLAR, FR. WHEEL SIDE | 1 |
3 | 44620KSP900 | COLLAR, FR. AXLE DISTANCE | 1 |
4 | 44680410000 | RETAINER, GEAR BOX | 1 |
5 | 44800KTE920 | BOX ASSY., SPEEDOMETER GEAR | 1 |
6 | 44804KSP901 | GEAR, SPEEDOMETER | 1 |
7 | 44809KPL900 | WASHER, SPEEDOMETER GEAR | 1 |
8 | 45251KVE901 | DISK, FR. BRAKE | 1 |
9 | 90105KSP870 | BOLT, DISK, 8X24 | 6 |
10 | 90306KTE911 | NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) | 1 |
11 | 961506301010 | BEARING, RADIAL BALL, 6301UU | 2 |
12 | 91251KPH901 | DUST SEAL, 21X37X7(ARAI) | 1 |
13 | 91258410013 | DUST SEAL, 40X50X5(ARAI) | 1 |
14 | 44650KSP870 | WHEEL SUB ASSY., FR. | 1 |
15 | 44711KFN852 | TIRE, FR.(2.75-18 42P) | 1 |
16 | 44712KFN852 | TUBE(2.75-18) | 1 |
