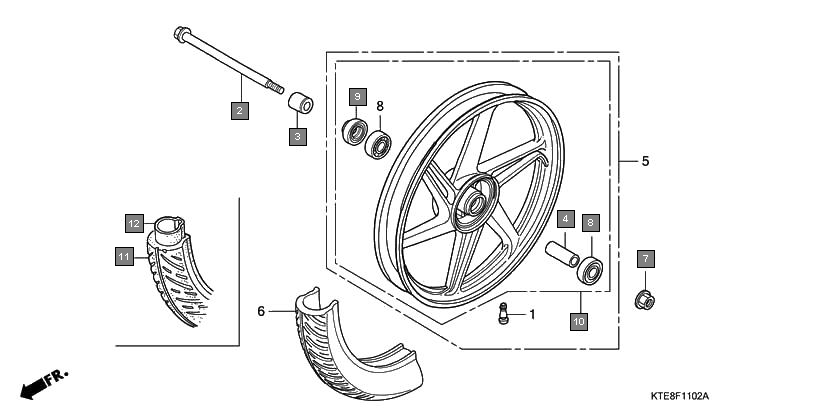

Motorcycles CB Shine CBF125C9 Frame Front wheel(3)
Ref.No. Part No. Description Oty
1 44301KPL900 AXLE, FR. WHEEL 1
2 44311KSP900 COLLAR, FR. WHEEL SIDE 1
3 44620KSP900 COLLAR, FR. AXLE DISTANCE 1
4 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
5 961406301010 BEARING, RADIAL BALL, 6301U 2
6 91251KPH901 DUST SEAL, 21X37X7(ARAI) 1
7 44650KTE950 WHEEL SUB ASSY., FR. 1
8 44711KFN852 TIRE, FR.(2.75-18 42P) 1
9 44712KFN852 TUBE(2.75-18) 1
