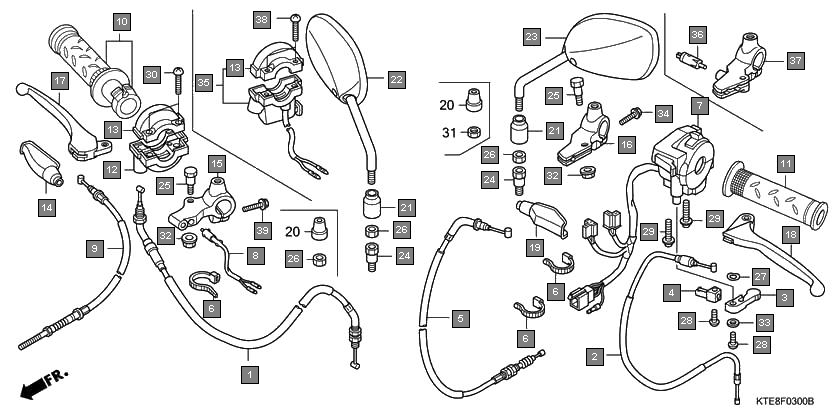

Motorcycles CB Shine CBF125C9 Frame Handle lever/switch/cable(1)
Ref.No. Part No. Description Oty
1 17910KTE911 CABLE COMP., THROTTLE 1
2 17950KTE910 CABLE COMP., CHOKE 1
3 17961KTE911 LEVER, CHOKE 1
4 17962KTE910 STOPPER, CABLE 1
5 22870KTE910 CABLE COMP., CLUTCH 1
6 32161KSP920 BAND B1, WIRE 2
7 35200KTE911 SWITCH ASSY., WINKER 1
8 32161KSP920 BAND B1, WIRE 3
9 35200KTE930 SWITCH ASSY., WINKER 1
10 35340KCC900 SWITCH ASSY., FR. STOP 1
11 45450KTE910 CABLE COMP., FR. BRAKE 1
12 53140KSP900 GRIP COMP., THROTTLE 1
13 53166KSP900 GRIP, L. HANDLE 1
14 53167GE4000 HOUSING, THROTTLE 1
15 53168KTE910 HOUSING, UNDER THROTTLE 1
16 53168166000 HOUSING, THROTTLE 1
17 53171KCC900 COVER, R. HANDLE LEVER 1
18 53171KTE910 BRACKET, R. HANDLE LEVER 1
19 53172KTE910 BRACKET, L. HANDLE LEVER 1
20 53175KTE910 LEVER COMP., R. HANDLE 1
21 53178KTE910 LEVER COMP., L. HANDLE 1
22 53179KTC900 COVER, L. HANDLE LEVER 1
23 88113KAG900 CAP, LOCK NUT 2
24 88114198D10 CAP, LOCK NUT 2
25 88210KTE921 MIRROR COMP., R. 1
26 88210KTE911 MIRROR COMP., R. 1
27 88220KTE921 MIRROR COMP., L. 1
28 88220KTE911 MIRROR COMP., L. 1
29 90103KTE920 BOLT, ADAPTER, 10MM 2
30 90114428870 BOLT, HANDLE LEVER PIVOT 2
31 90114428870 BOLT, HANDLE LEVER PIVOT 1
32 90201MW3620 NUT, HEX., 10MM (LEFT HAND THREAD) 2
33 90201MW3620 NUT, HEX., 10MM (LEFT HAND THREAD) 1
34 90442147000 WASHER, WAVE 1
35 93500050100A SCREW, PAN, 5X10 2
36 93500050200G SCREW, PAN, 5X20 2
37 93500050220G SCREW, PAN, 5X22 2
38 94002100000S NUT, HEX., 10MM 1
39 9405006000 NUT, FLANGE, 6MM 1
40 9405006000 NUT, FLANGE, 6MM 2
41 9410305000 WASHER, PLAIN, 5MM 1
42 960010602507 BOLT, FLANGE, 6X25 1
43 35150KTE930 SWITCH ASSY., STARTER 1
44 35330KEJ900 SWITCH COMP., FR. LEVER 1
45 53172KTE930 BRACKET, L. HANDLE LEVER 1
