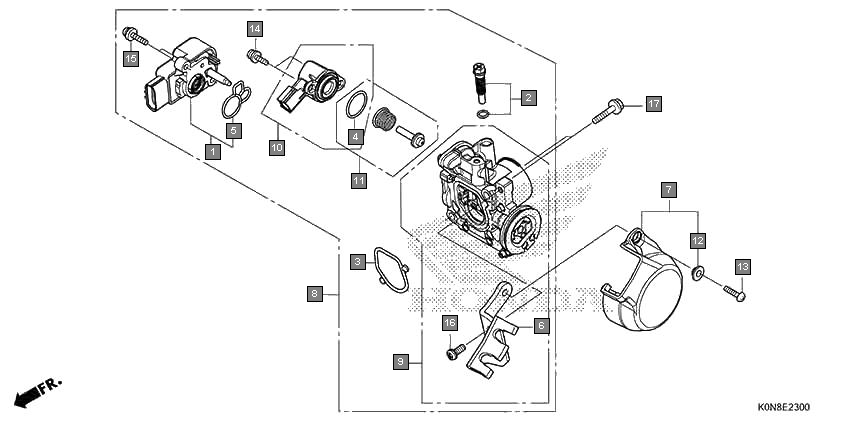

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16010K0LD01 | SENSOR SET | 1 |
| 2 | 16016K0LD01 | SCREW SET | 1 |
| 3 | 16075K0ND01 | O-RING, THROTTLE BODY | 1 |
| 4 | 16077K0LD01 | O-RING, 20.4X1.9 | 1 |
| 5 | 16079K0LD01 | O-RING | 1 |
| 6 | 16169K0ND01 | STAY, WIRE | 1 |
| 7 | 16306K0ND00 | COVER, THROTTLE BODY | 1 |
| 8 | 16400K0ND01 | BODY ASSY., THROTTLE(GQYSB A) | 1 |
| 9 | 16410K0ND01 | BODY SET | 1 |
| 10 | 16480K0LD01 | SOLENOID | 1 |
| 11 | 16485K0LD01 | SEAT SET | 1 |
| 12 | 61106K0LD00 | COLLAR,THROTTLE BODY COVER | 1 |
| 13 | 93500050120A | SCREW, PAN, 5X12 | 1 |
| 14 | 938910401018 | SCREW-WASHER, 4X10 | 2 |
| 15 | 938910401618 | SCREW-WASHER, 4X16 | 2 |
| 16 | 938920501218 | SCREW-WASHER, 5X12 | 1 |
| 17 | 960010602000 | BOLT, FLANGE, 6X20 | 2 |
