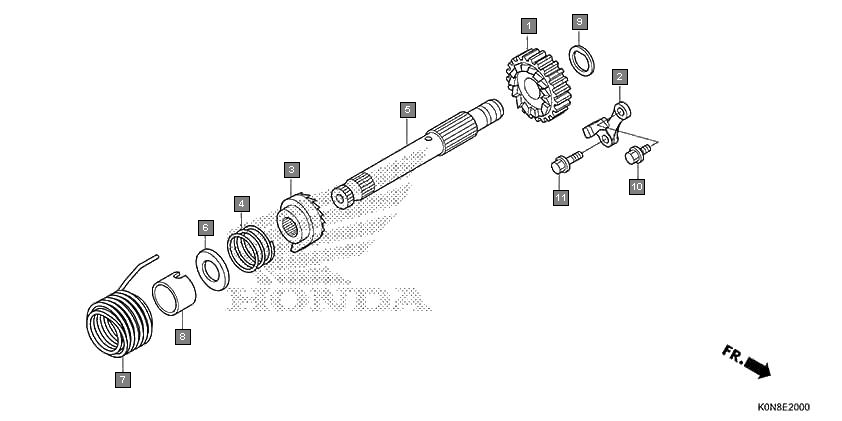

Motorcycles SP125 CBF125ML Engine Kick starter spindle
Ref.No. Part No. Description Oty
1 28211K0ND00 PINION, KICK STARTER(23T) 1
2 28215K0ND00 STOPPER, STARTER RATCHET 1
3 28221K0ND00 RATCHET, STARTER DRIVE 1
4 28223KM7701 SPRING, RATCHET 1
5 28251K0ND00 SPINDLE, KICK STARTER 1
6 28254437000 SEAT, RATCHET SPRING 1
7 28261K0ND00 SPRING, KICK RETURN 1
8 28282KGH900 COLLAR, KICK SPRING 1
9 90451KGH900 WASHER, SPECIAL, 14MM 1
10 957010601600 BOLT, FLANGE, 6X16 1
11 957010602200 BOLT, FLANGE, 6X22 1
