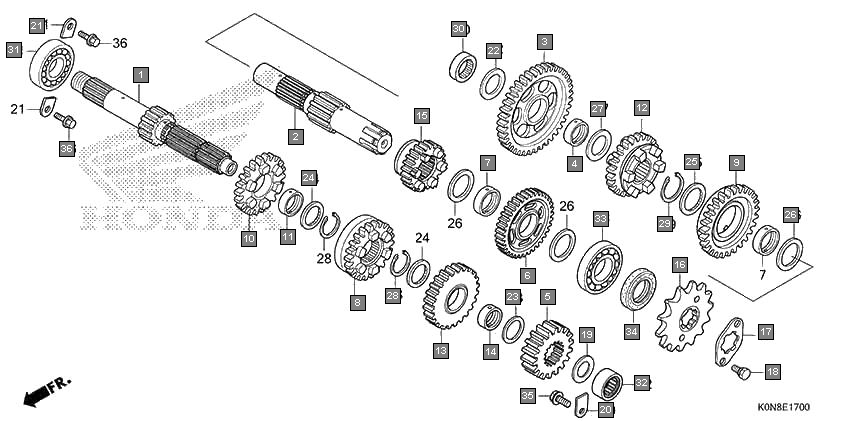

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 23211K0ND00 | MAINSHAFT(11T) | 1 |
| 2 | 23221K0ND00 | COUNTERSHAFT(19T) | 1 |
| 3 | 23421K0ND00 | GEAR, COUNTERSHAFT FIRST(38T) | 1 |
| 4 | 23427KRM840 | BUSH, 17X20.5X8.0 | 1 |
| 5 | 23431K0ND00 | GEAR, MAINSHAFT SECOND(15T) | 1 |
| 6 | 23441K0ND00 | GEAR, COUNTERSHAFT SECOND(29T) | 1 |
| 7 | 23442K0ND00 | BUSH, 20X23X9 | 2 |
| 8 | 23451K0ND00 | GEAR, MAINSHAFT THIRD(17T) | 1 |
| 9 | 23461K0ND00 | GEAR, COUNTERSHAFT THIRD(25T) | 1 |
| 10 | 23471K0ND00 | GEAR, MAINSHAFT FOURTH(21T) | 1 |
| 11 | 23472KTE910 | BUSH, 17MM | 1 |
| 12 | 23481K0ND00 | GEAR, COUNTERSHAFT FOURTH(23T) | 1 |
| 13 | 23491K0ND00 | GEAR, MAINSHAFT FIFTH(30T) | 1 |
| 14 | 23492KSP910 | COLLAR, SPLINE, 17X20X11 | 1 |
| 15 | 23501K0ND00 | GEAR, COUNTERSHAFT FIFTH(28T) | 1 |
| 16 | 23801K0ND00 | SPROCKET, DRIVE(14T) | 1 |
| 17 | 23811KR3600 | PLATE A2, FIXING | 1 |
| 18 | 90084041000 | BOLT, DRIVE SPROCKET FIXING | 2 |
| 19 | 90412K63D30 | WASHER, SPECIAL, 14X26 | 1 |
| 20 | 90441K0ND00 | PLATE, BEARING HOLDER | 1 |
| 21 | 90441KRM840 | PLATE, BEARING HOLDER | 2 |
| 22 | 90451KREG00 | WASHER, SPECIAL(17MM) | 1 |
| 23 | 90452K0ND00 | WASHER, 17MM | 1 |
| 24 | 90452KRM840 | WASHER, SPLINE, 17X23X1.6 | 2 |
| 25 | 90453KRM840 | WASHER, SPLINE, 20MM | 1 |
| 26 | 90454KPS900 | WASHER B, THRUST, 20MM | 3 |
| 27 | 90458KVS900 | WASHER, THRUST, 17MM | 1 |
| 28 | 90601KRM840 | CIRCLIP, 17MM | 2 |
| 29 | 90605KVS900 | SET RING, 20MM | 1 |
| 30 | 91003KYJ711 | BEARING, NEEDLE, 17X27X13 | 1 |
| 31 | 91006K14901 | BEARING, RADIAL BALL, 6203 (SKF) | 1 |
| 32 | 91007K63D32 | BEARING, NEEDLE, 14X22X13(NRB) | 1 |
| 33 | 91016K0ND01 | BEARING, RADIAL BALL, 6204 (NEI) | 1 |
| 34 | 91203K0ND01 | OIL SEAL, 20X32X6(ARAI) | 1 |
| 35 | 957010601400 | BOLT, FLANGE, 6X14 | 1 |
| 36 | 957010601600 | BOLT, FLANGE, 6X16 | 2 |
