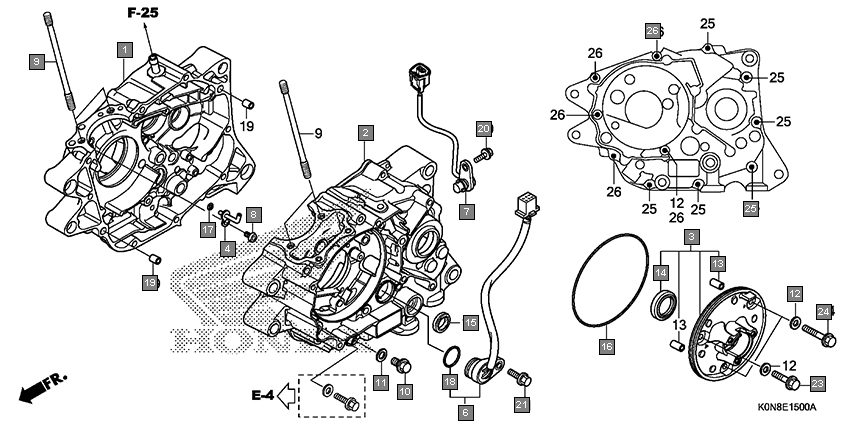

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 11100K0ND00 | CRANKCASE COMP., R. | 1 |
| 2 | 11200K0ND00 | CRANKCASE COMP., L. | 1 |
| 3 | 11320K0ND00 | BASE ASSY., STATOR | 1 |
| 4 | 15201K0ND01 | JET COMP., PISTON | 1 |
| 5 | 35759K0ND01 | CONTACT ASSY., CHANGE SWITCH | 1 |
| 6 | 37700K0ND01 | SENSOR ASSY., SPEED | 1 |
| 7 | 90003K0JN00 | BOLT, SPECIAL, 6X12 | 1 |
| 8 | 90031K0JN00 | BOLT, CYLINDER STUD(7X199.5) | 4 |
| 9 | 90131KRM840 | BOLT, DRAIN PLUG, 12MM | 1 |
| 10 | 90401KWPF00 | WASHER, DRAIN PLUG, 12MM | 1 |
| 11 | 90488425000 | WASHER, SEALING, 6MM | 4 |
| 12 | 90702KRM840 | DOWEL PIN, 8X14 | 2 |
| 13 | 91201K0ND01 | OIL SEAL, 22.3X32X6(ARAI) | 1 |
| 14 | 91202K0ND01 | OIL SEAL, 12X22X5(ARAI) | 1 |
| 15 | 91301035003 | O-RING, 107X2(ARAI) | 1 |
| 16 | 91305K0JN00 | O-RING, 3.8X1.4 | 1 |
| 17 | 91305K0ND00 | O-RING, 19.4X2.3 | 1 |
| 18 | 9430108200 | DOWEL PIN, 8X20 | 2 |
| 19 | 957010601808 | BOLT, FLANGE, 6X18 | 1 |
| 20 | 957010602008 | BOLT, FLANGE, 6X20 | 1 |
| 21 | 960010602200 | BOLT, FLANGE, 6X22 | 1 |
| 22 | 960010603000 | BOLT, FLANGE, 6X30 | 2 |
| 23 | 960010604000 | BOLT, FLANGE, 6X40 | 6 |
| 24 | 960010607500 | BOLT, FLANGE, 6X75 | 5 |
