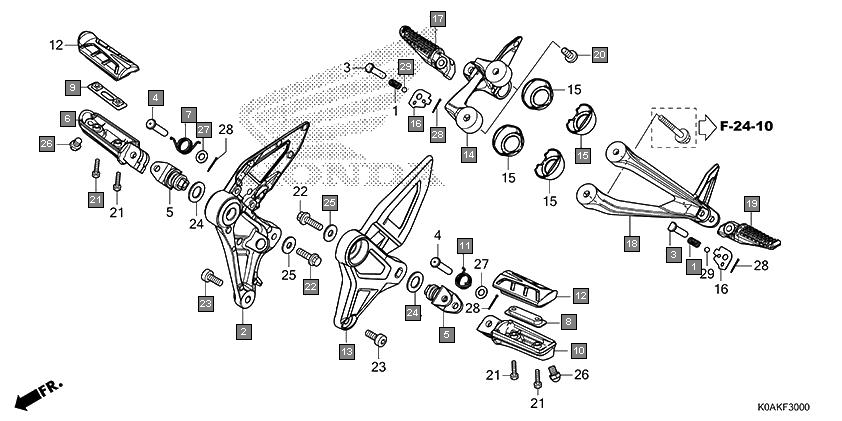

Motorcycles CB300R CBF300NAK Frame Step
Ref.No. Part No. Description Oty
1 28333300000 SPRING, KICK STARTER STOPPER 2
2 50600K94T00 HOLDER, R. STEP 1
3 50603K94T00 PIN, STEP BAR JOINT 2
4 50603KB4000 PIN, STEP BAR JOINT 2
5 50612K94T00 BRACKET, MAIN STEP 2
6 50612MM5000 ARM, R. STEP 1
7 50617445840 SPRING, R. STEP RETURN 1
8 50619K0AE10 PLATE, STEP SETTING 1
9 50619MM5000 PLATE, STEP SETTING 1
10 50642MM5000 ARM, L. STEP 1
11 50644445840 SPRING, L. STEP RETURN 1
12 50661MJED00 RUBBER, MAIN STEP 2
13 50700K94T00 HOLDER, L. STEP 1
14 50715K0AE10 HOLDER, R. PILLION STEP 1
15 50716K0AE10 COVER, PILLION STEP 4
16 50718MN8000 PLATE, PILLION STEP CLICK 2
17 50720K94T00 ARM, R. PILLION STEP 1
18 50725K94T00 HOLDER, L. PILLION STEP 1
19 50730K94T00 ARM, L. PILLION STEP 1
20 90106K94T00 BOLT, SOCKET, 8X20 2
21 90115MV9000 BOLT, MAIN STEP RUBBER SETTING 4
22 90131KWN900 BOLT, FLANGE, 8X28 2
23 90161K94T00 BOLT, SOCKET, 8X22 2
24 90502K94T00 WASHER, 15.5X27X2.0 2
25 90503K94T00 WASHER, 8.5X22X2.0 2
26 92501080100A BOLT, CAP, 8X10 2
27 9410208000 WASHER, PLAIN, 8MM 2
28 9420116151 PIN, SPLIT, 1.6 4
29 9621108000 BALL, STEEL, #8(1/4) 2
