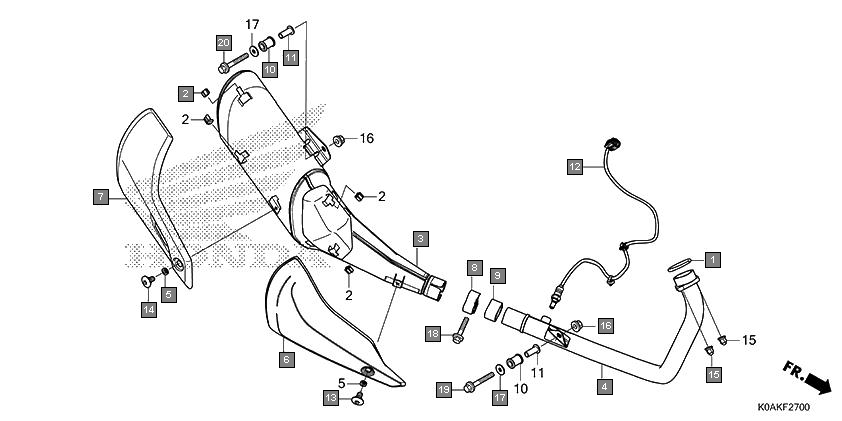

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 18291MEB670 | GASKET, EX. PIPE | 1 |
2 | 18293MCAA20 | RUBBER, PROTECTOR PACKING | 4 |
3 | 18310K0AD10 | MUFFLER COMP. | 1 |
4 | 18320K0AE10 | PIPE COMP., EX. | 1 |
5 | 18345MBT610 | RUBBER, PROTECTOR MOUNTING | 2 |
6 | 18355K0AE10 | COVER A, MUFFLER | 1 |
7 | 18356K0AE10 | COVER B, MUFFLER | 1 |
8 | 18373K33D00 | BAND, MUFFLER | 1 |
9 | 18392KYJ901 | PACKING, MUFFLER | 1 |
10 | 18421K75A50 | RUBBER, MUFFLER MOUNTING | 2 |
11 | 18422KAF700 | COLLAR, MUFFLER MOUNTING | 2 |
12 | 36532K0AE11 | SENSOR, OXYGEN | 1 |
13 | 90113KTA920 | SCREW, PAN, 6X12 | 1 |
14 | 90115K87A00 | SCREW, PAN, 6X12 | 1 |
15 | 90304KPH700 | NUT, HEX. CAP, 8MM | 2 |
16 | 9405008000 | NUT, FLANGE, 8MM | 2 |
17 | 9410308000 | WASHER, PLAIN, 8MM | 2 |
18 | 957010803802 | BOLT, FLANGE, 8X38 | 1 |
19 | 957010805000 | BOLT, FLANGE, 8X50 | 1 |
20 | 958010805000 | BOLT, FLANGE, 8X50 | 1 |
