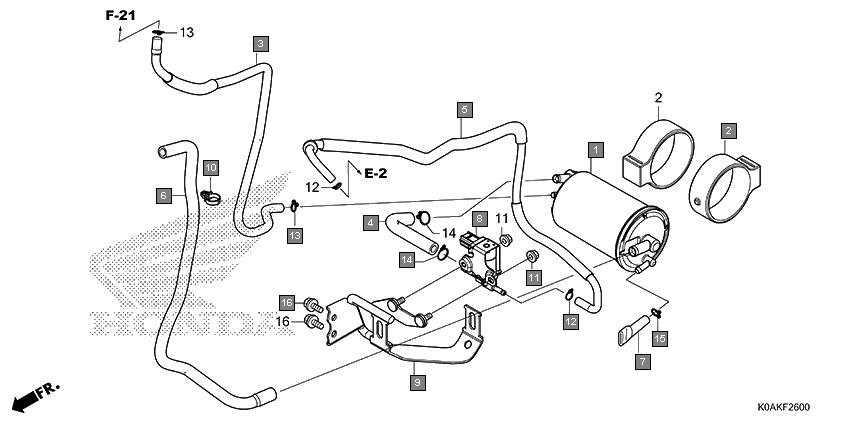

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 17310K98E01 | CANISTER COMP. | 1 |
| 2 | 17311K35V00 | RUBBER, CANISTER MOUNT | 2 |
| 3 | 17413K98E00 | TUBE B, CHARGE | 1 |
| 4 | 17414K98E00 | TUBE A, PURGE | 1 |
| 5 | 17415K0AE10 | TUBE B, PURGE | 1 |
| 6 | 17416K98E00 | TUBE, AIR | 1 |
| 7 | 17431K87L00 | TUBE, DRAIN | 1 |
| 8 | 36162KPNA71 | VALVE, PURGE CONTROL SOLENOID | 1 |
| 9 | 50185K98J00 | BRACKET, CANISTER | 1 |
| 10 | 90659734K51 | CLIP, HARNESS(NIFCO) | 1 |
| 11 | 9405005070 | NUT, FLANGE, 5MM | 2 |
| 12 | 9500202070 | CLIP, TUBE(B7) | 2 |
| 13 | 9500202080 | CLIP, TUBE(B8) | 2 |
| 14 | 9500202120 | CLIP, TUBE(B12) | 2 |
| 15 | 9500250000 | CLIP, TUBE(C9) | 1 |
| 16 | 957010601207 | BOLT, FLANGE, 6X12 | 2 |
